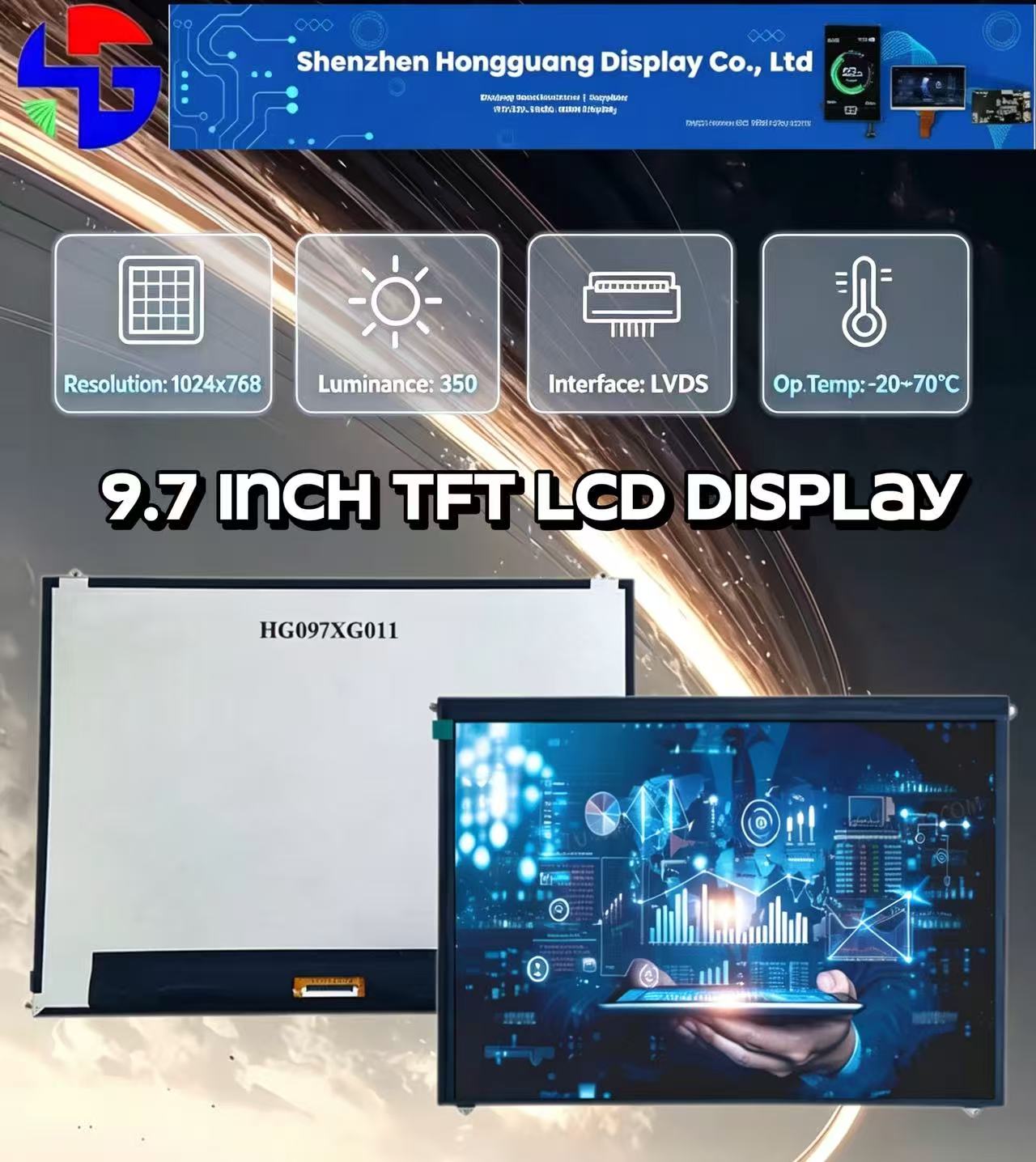

In the world of embedded systems and industrial automation, display reliability is not a luxury—it is a requirement. Today, we are taking a deep dive into the HG097XG011, a 9.7-inch TFT LCD module engineered by Shenzhen Hongguang Display Co., Ltd. specifically for demanding professional environments. Whether you are designing medical equipment, factory control panels, or ruggedized embedded systems, here is why this display module deserves a spot in your next bill of materials.
Key Technical Specifications
- Native Resolution: 1024 × 768 (XGA)
- Interface: LVDS (Low-Voltage Differential Signaling)
- Brightness: 350 cd/m²
- Operating Temperature: -20°C to +70°C
- Display Size: 9.7 inches diagonal
Why These Specs Matter in Real-World Applications
XGA Resolution for Data-Dense Interfaces The 1024×768 resolution provides an optimal balance between screen real estate and pixel density for industrial HMI (Human-Machine Interface) design. Unlike consumer-grade displays that prioritize ultra-high DPI for media consumption, XGA ensures that text, schematics, and data tables remain sharp and legible at typical viewing distances without overburdening embedded GPUs.
LVDS Interface: Signal Integrity in Noisy Environments Industrial floors are electrically hostile. The HG097XG011 uses LVDS rather than parallel RGB interfaces. LVDS transmits data using low-voltage differential signals, which are inherently resistant to electromagnetic interference (EMI). This means fewer display artifacts, no flickering near motors or inverters, and reliable performance in electrically noisy settings.
Extended Temperature Range (-20°C to +70°C) Consumer displays typically fail outside 0–50°C. The HG097XG011 is validated for -20°C to +70°C operation, covering everything from cold storage facilities and outdoor kiosks to hot manufacturing environments. This wide range eliminates the need for active heating or cooling systems solely for display protection, reducing both BOM cost and system complexity.
350 cd/m² Brightness for Ambient Visibility At 350 nits, this display strikes the right balance for indoor industrial use. It is bright enough to overcome overhead factory lighting and glare from windows, yet not so bright as to cause operator fatigue during extended shifts. For applications requiring direct sunlight readability, custom high-brightness variants can be explored through Hongguang’s engineering team.
Target Applications
- Industrial Automation: PLC HMI and CNC Control Panels leveraging EMI-resistant LVDS and wide temperature tolerance.
- Medical Devices: Patient monitors and diagnostic equipment benefiting from stable resolution and long-term reliability.
- Transportation: Fleet management displays and ticketing kiosks utilizing the extended operating temperature range.
- Embedded Systems: Test equipment and laboratory instruments relying on XGA clarity and industrial durability.
About Shenzhen Hongguang Display Co., Ltd.
Shenzhen Hongguang Display Co., Ltd. specializes in industrial-grade TFT LCD modules designed for longevity and performance stability. Unlike consumer display manufacturers that cycle products every 12–18 months, Hongguang commits to long-term availability and consistent quality—critical factors for industrial OEMs with product lifecycles spanning 5–10 years.
Final Thoughts
Choosing an industrial display is about more than specs on a datasheet. It is about supply chain stability, environmental resilience, and signal integrity under real-world conditions. The HG097XG011 represents a mature, field-proven solution for engineers who cannot afford display failures in production.
💡 Design Tip: When integrating the HG097XG011, ensure your LVDS cable routing maintains proper impedance matching and avoids parallel runs with power lines to maximize signal integrity. Refer to the hardware integration guide for recommended connector pinouts and timing parameters.
For samples, technical documentation, or custom configuration inquiries, contact the Shenzhen Hongguang Display sales engineering team directly.
