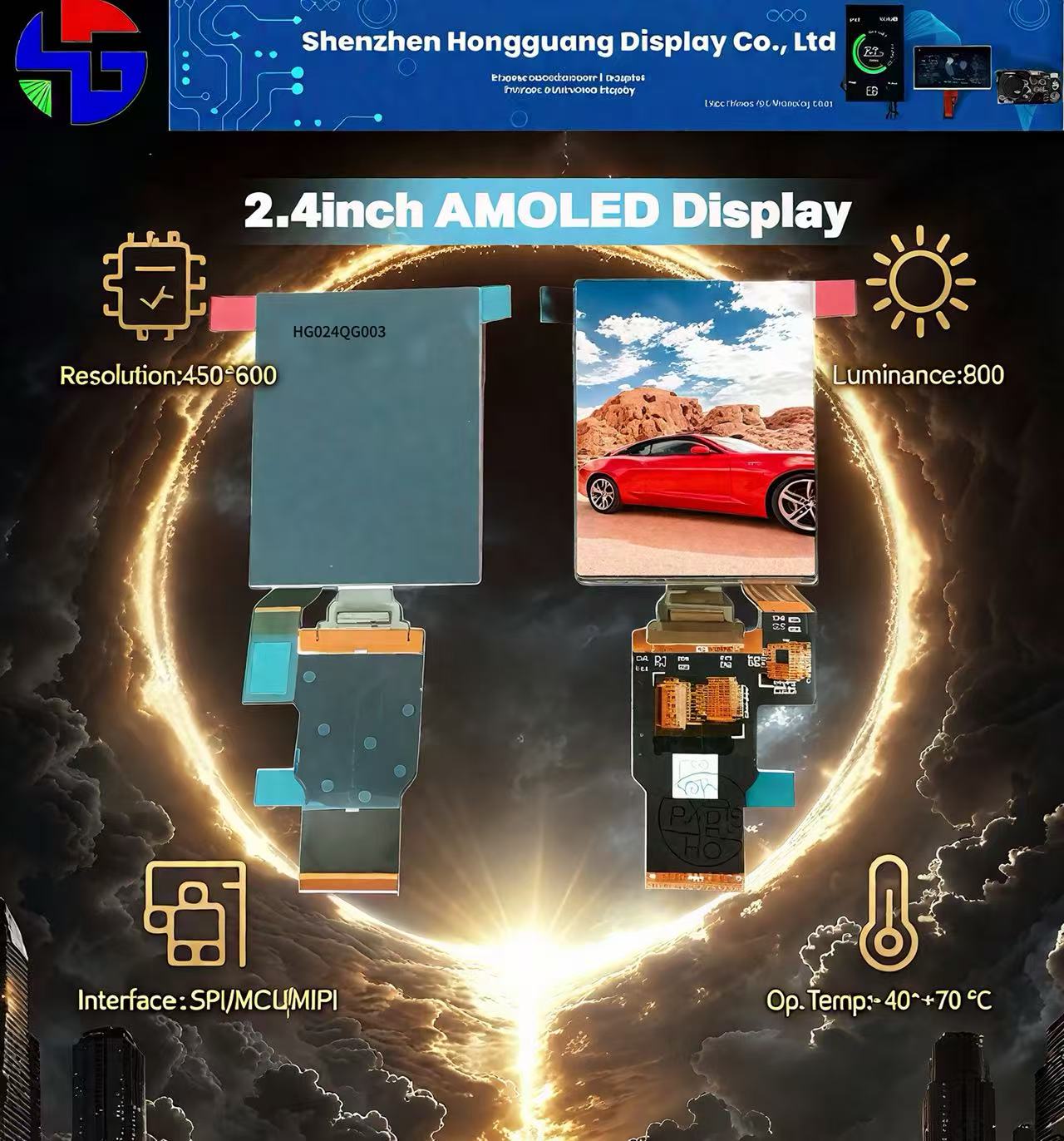

SHENZHEN, China — Shenzhen Hongguang Display Co., Ltd., a specialist in advanced display solutions, has announced the release of its new HG024QG003, a 2.4-inch Active Matrix Organic Light Emitting Diode (AMOLED) module. This component is engineered specifically for embedded systems requiring superior visual performance, high contrast ratios, and robust environmental tolerance.
Unlike traditional LCD technologies that rely on backlighting, the HG024QG003 utilizes self-emissive pixel technology. This architecture allows for true blacks and infinite contrast ratios, significantly reducing power consumption when displaying dark user interfaces—a critical factor for battery-operated IoT devices. The module features a vertical resolution of 450×600 pixels, providing a high pixel density that ensures text readability and graphical precision in compact form factors.
A defining characteristic of this module is its optical performance. With a peak luminance of 800 nits, the display overcomes the typical limitations of OLED panels in outdoor or high-ambient-light environments. This brightness level ensures that critical data remains visible in direct sunlight, making it suitable for handheld industrial scanners and outdoor wearable technology. Furthermore, the panel is rated for an extended operating temperature range of -40°C to +70°C, ensuring reliability in extreme thermal conditions where standard consumer displays might fail.
Connectivity is designed for flexibility within embedded engineering. The module supports multiple interface protocols, including SPI, MCU, and MIPI. This versatility allows system integrators to adapt the display to a wide variety of host controllers, from low-power microcontrollers to high-performance application processors, without requiring significant hardware redesigns.
Potential Application Scenarios
The technical specifications of the HG024QG003 position it as a viable solution for several specialized sectors:
Industrial Handheld Terminals: The combination of high brightness (800 nits) and rugged temperature tolerance (-40°C~+70°C) makes this display ideal for logistics scanners and field service devices used in warehouses or outdoor environments.
Advanced Wearable Technology: The 2.4-inch form factor coupled with the power-saving benefits of AMOLED technology is optimized for smartwatches and fitness trackers that require always-on displays without draining battery life.
Medical Portable Devices: The high resolution (450×600) and sharp contrast allow for the clear visualization of vital signs and waveforms on compact patient monitoring equipment.
Automotive Aftermarket Electronics: The wide temperature range ensures stability when installed in vehicle dashboards or control units exposed to direct sunlight and fluctuating cabin temperatures.
