10.3 inch TFT LCD Panel IPS Display LVDS 1920×720 500nits Brightness

HG103HD002-V1 | 10.3 inch IPS TFT LCD Panel | Wide-Format High-Brightness Display | LVDS-8 Interface | 1920×720 Resolution | 500 nits BrightnessHG103HD002-V1| 10.3英寸IPS TFT LCD面板 | 宽屏高亮显示屏 | LVDS-8接口 | 1920×720分辨率 | 500尼特亮度

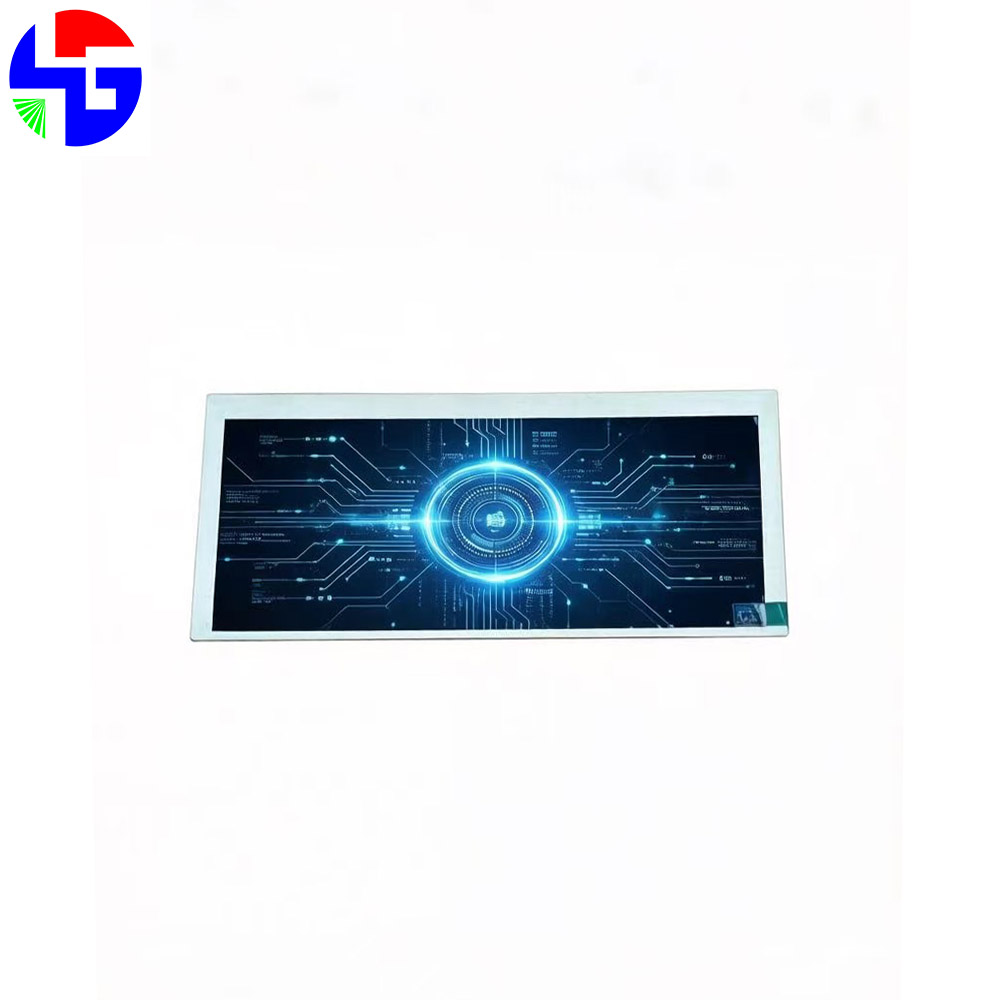

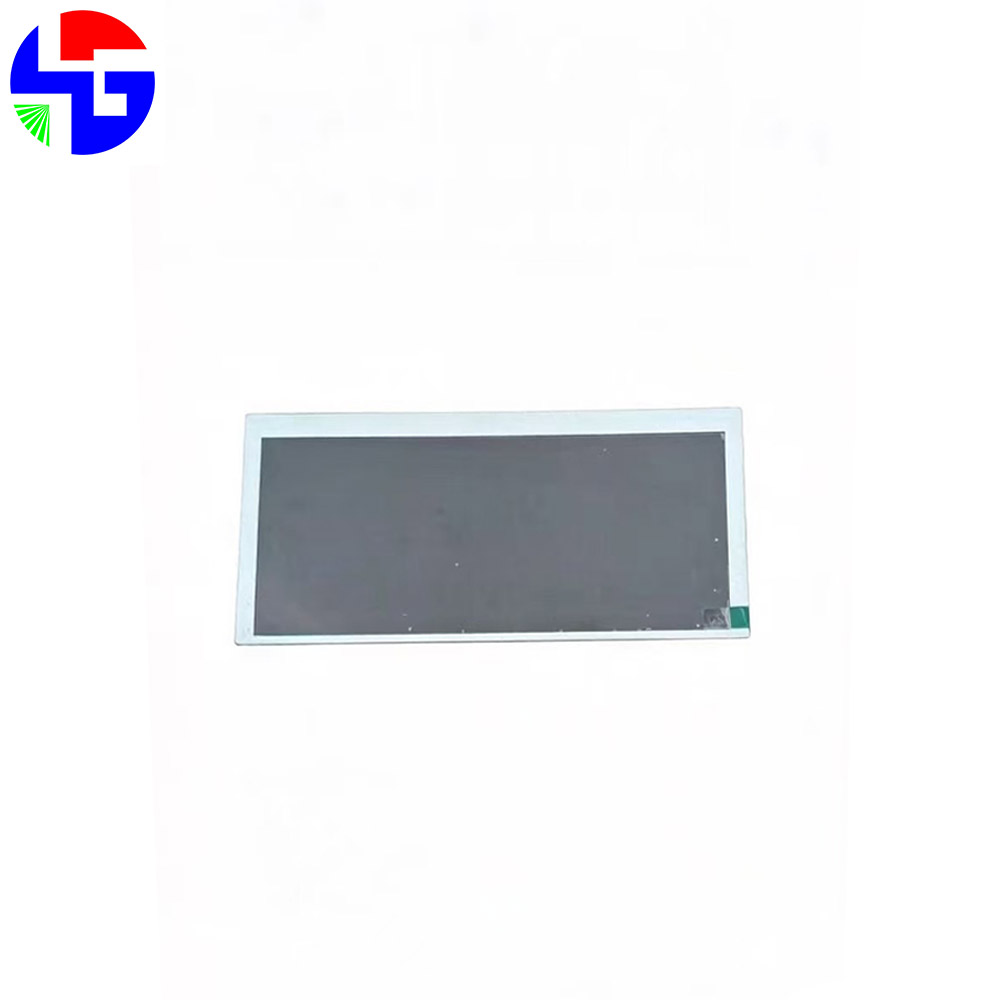

The HG103HD002-V1 is a 10.3-inch wide-format IPS TFT LCD module designed and manufactured by Hongguang Display, built for demanding applications requiring high brightness, wide viewing angles, and reliable performance in harsh environments. Featuring a 1920×720 pixel resolution, this panel delivers crisp, high-definition visuals with sharp detail and vibrant color reproduction, making it ideal for automotive dashboards, outdoor digital signage, industrial HMIs, and other professional display solutions.HG103HD002-V1 是一款由鸿光显示设计和生产的10.3英寸宽屏IPS TFT LCD模组，专为对亮度要求高、视角广且在恶劣环境下仍能保持可靠性能的严苛应用而打造。该面板采用1920×720像素分辨率，可呈现清晰锐利的高清画面，细节丰富、色彩鲜艳，非常适合用于汽车仪表盘、户外数字标牌、工业人机界面及其他专业显示解决方案。

The display uses an IPS (In-Plane Switching) panel with a Transmissive / Normally Black mode, offering an all-direction optimal viewing angle. This ensures consistent brightness, contrast, and color accuracy from any perspective, eliminating the color shifting and washout common with TN panels. Even at extreme off-axis angles, the image remains clear and legible, which is critical for multi-user industrial control systems and automotive displays viewed from different positions.该显示屏采用IPS（平面转换）面板，支持透射式/常黑模式，可实现全方位的最佳可视角度。这确保了无论从哪个视角观看，亮度、对比度和色彩准确性都保持一致，有效避免了TN面板常见的色彩偏移和画面泛白问题。即使在极端离轴角度下，图像依然清晰可辨，这对于从不同位置观看的多用户工业控制系统和汽车显示屏而言至关重要。

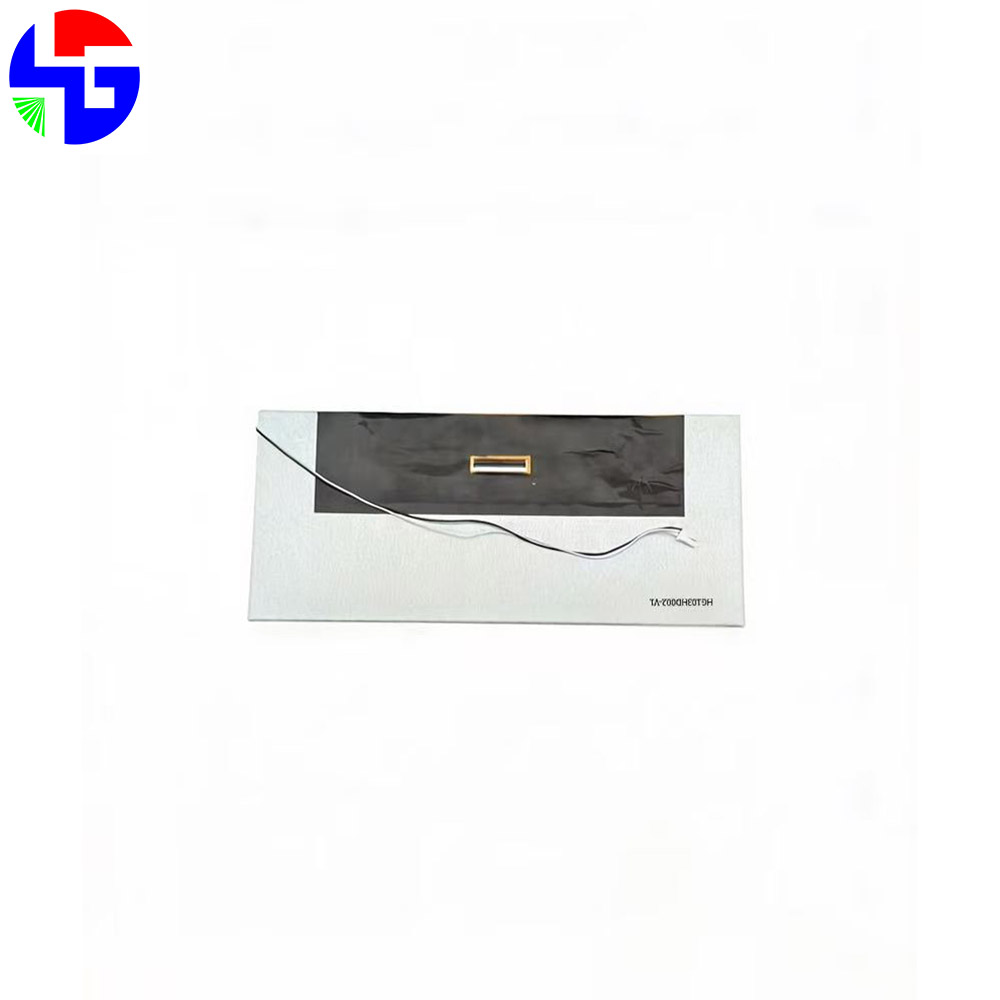

The module features an LVDS-8 interface, providing stable and high-speed data transmission between the host controller and the display, with support for the full 1920×720 resolution at standard refresh rates. The display is driven by a combination of 2 pieces of HX8272-B-LTP and 2 pieces of HX8695-ED1-LT driver ICs, ensuring efficient signal processing and consistent performance.该模块配备LVDS-8接口，可在主机控制器与显示屏之间实现稳定、高速的数据传输，并支持标准刷新率下的全高清1920×720分辨率。显示屏由两片HX8272-B-LTP和两片HX8695-ED1-LT驱动IC协同工作驱动，确保高效的信号处理与稳定的性能。

In terms of physical dimensions, the module measures 265.2±0.30 mm × 109.8±0.30 mm × 5.60±0.20 mm (W × H × D), with an active display area of 243.648 mm × 91.368 mm (W × H). This form factor is optimized for wide-format applications, such as automotive center consoles, side mirror replacement displays, and long-bar digital signage.在物理尺寸方面，该模块的尺寸为265.2±0.30毫米×109.8±0.30毫米×5.60±0.20毫米（宽×高×厚），有效显示区域为243.648毫米×91.368毫米（宽×高）。此外形尺寸专为宽幅应用而优化，例如汽车中控台、侧视镜替换显示屏以及长条形数字标牌。

For industrial and automotive applications, the panel supports a wide operating temperature range of -20℃ to +70℃, with a storage temperature range of -30℃ to +80℃. This robust temperature tolerance ensures reliable performance in extreme environments, from cold outdoor installations to hot vehicle interiors. The module is fully RoHS-compliant, meeting international environmental standards and making it suitable for use in products distributed globally.对于工业和汽车应用，该面板支持-20℃至+70℃的宽工作温度范围，存储温度范围为-30℃至+80℃。这种强大的耐温性能确保了在极端环境中的可靠运行，无论是寒冷的户外安装，还是炎热的车内环境，都能稳定工作。该模块完全符合RoHS标准，满足国际环保要求，适合用于全球销售的产品。

Hongguang Display also offers custom engineering support for this panel, including optional touch screen integration (capacitive or resistive), brightness tuning, and optical bonding to enhance durability and sunlight readability further. Whether you need a standard off-the-shelf solution or a fully customized display for your project, the HG103HD002-V1 combines high performance, reliability, and flexibility to meet your requirements.鸿光显示还为该面板提供定制化工程支持，包括可选的触摸屏集成（电容式或电阻式）、亮度调节以及光学贴合技术，以进一步提升耐用性和在阳光下的可读性。无论您需要标准现货解决方案，还是为您的项目量身打造的完全定制显示屏，HG103HD002-V1都能兼顾高性能、可靠性和灵活性，满足您的各类需求。
