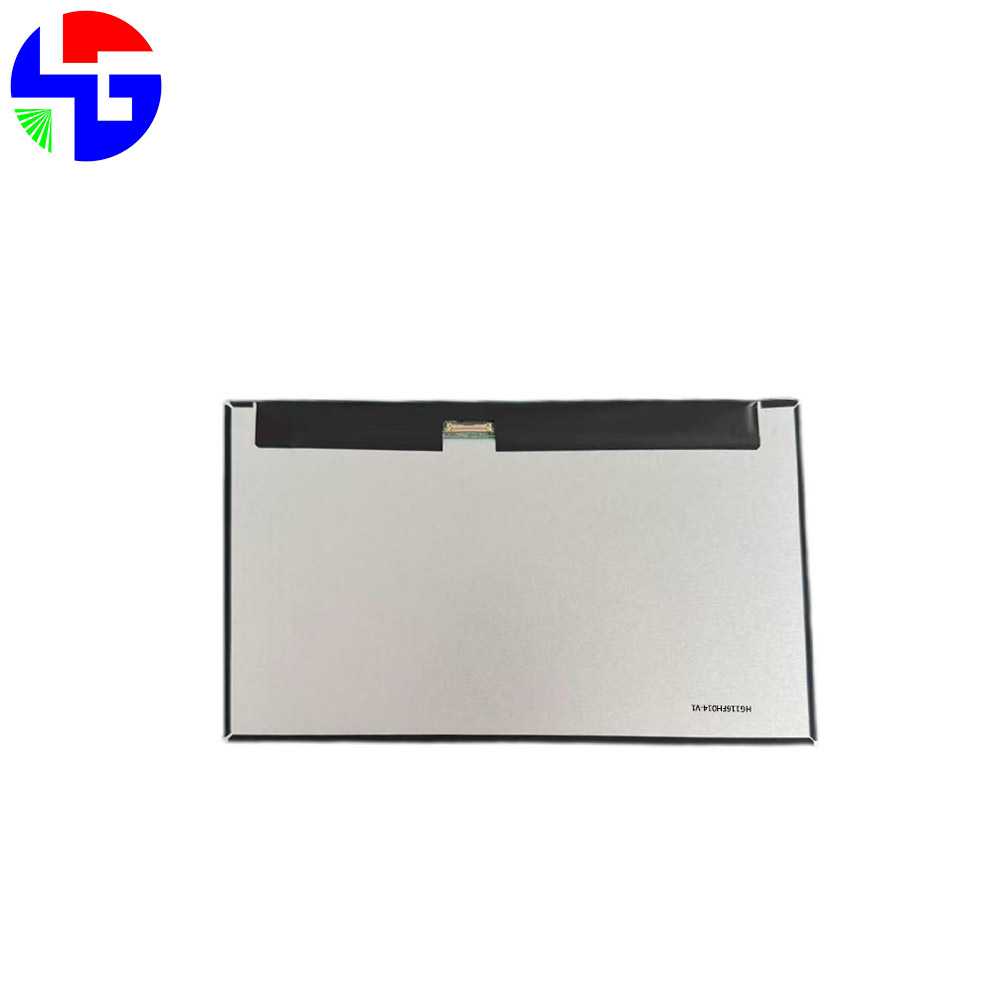

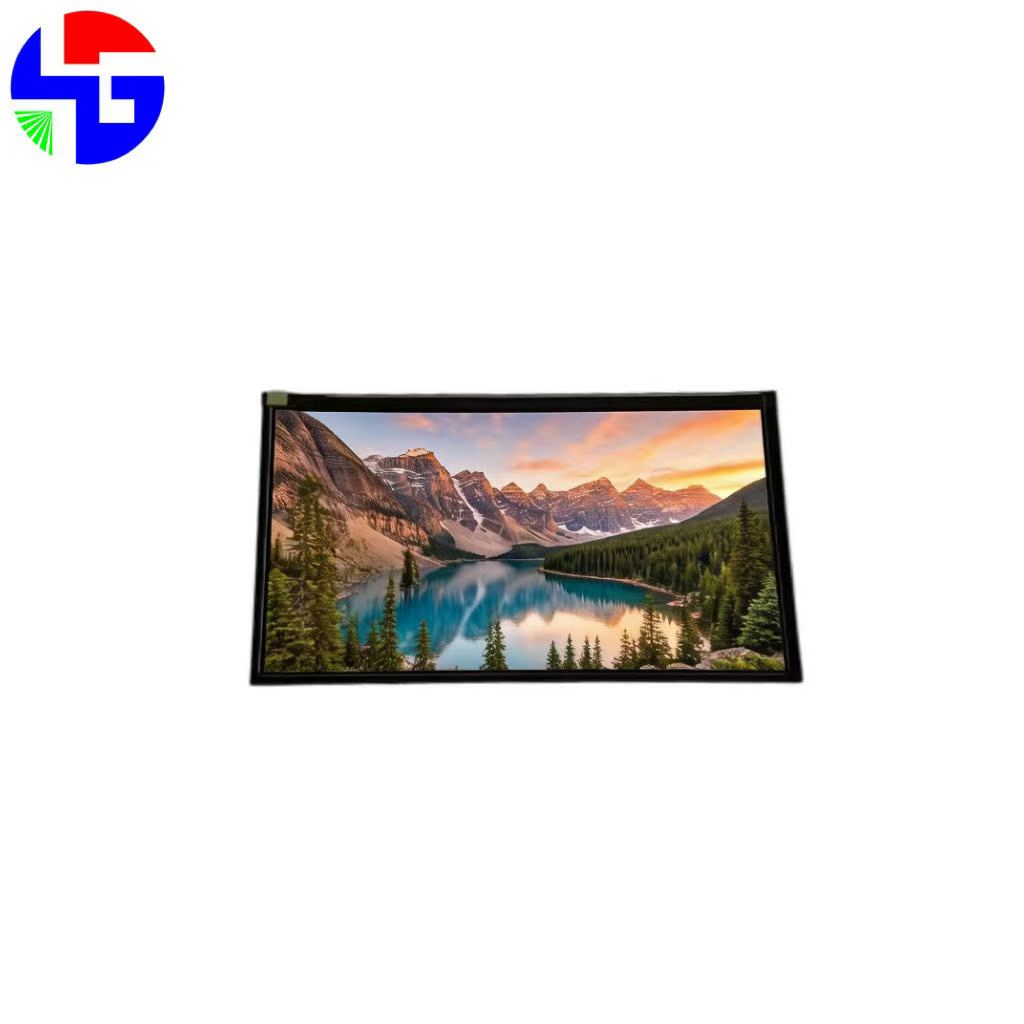

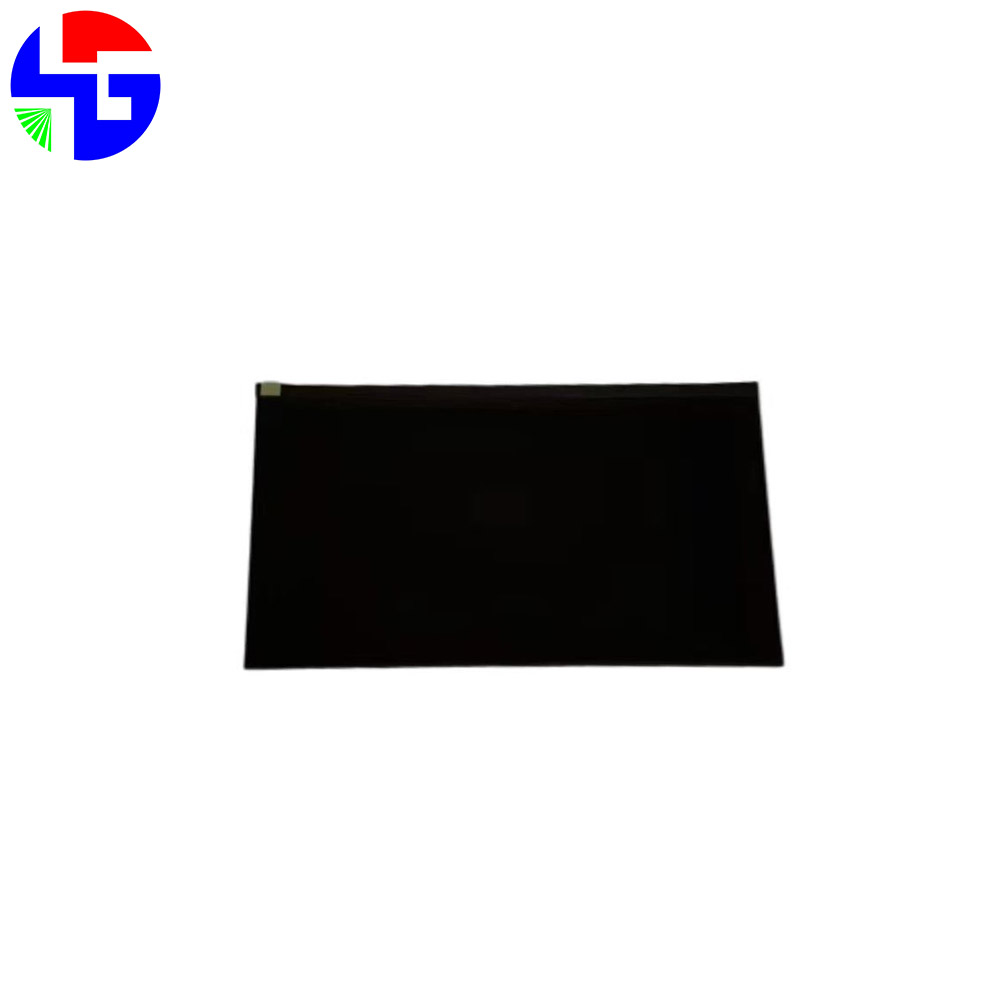

11.6 Inch TFT LCD Display 1920×1080 High Resolution 250nits Brightness

SKU HG116FH014-V1 Categories Application, Auto Displays, Custom Displays, EDP Interafce, Handheld Displays, High Resolution Displays, Industrial Displays, IPS Displays, LCD Controller Boards, Medical Displays, Military Displays, Security Displays, Smart Home Displays, TFT LCD Displays, Uncategorized

Model: HG116FH014-V1

Size: 11.6″

Diagonal Pixels:1920X1080

Display Type: IPS

Touchscreen:CUSTOM

Interface:EDP

Resources: Specifications | 2D Render

Leveraging its all-viewing-angle IPS panel, Full HD resolution, and EDP interface, this 11.6-inch display is ideally suited for the following specific applications:

Industrial Control Terminals: Perfect for factory automation equipment, PLC HMIs, and instrument control panels. environments, while the 1920×1080 resolution clearly presents complex data curves and parameters.

Medical Device Displays: Designed for patient monitors, ultrasound machines, and portable diagnostic instruments. The IPS all-viewing-angle feature allows medical staff to observe the screen clearly from various positions. The typical brightness of 250 cd/m² meets indoor medical visibility requirements, and the ultra-slim module (4.7/2.8 mm thickness) facilitates seamless integration into compact medical devices.

In-Vehicle Information Systems: Highly adaptable for car navigation units, digital instrument clusters, and rear-seat entertainment systems. Support for customizable touch functionality enables smooth integration with in-car systems. The wide operating temperature tolerance covers most in-vehicle conditions, and the EDP interface ensures high-speed, stable data transmission.

Education and Office Equipment: An excellent core display component for tablets, 2-in-1 laptops, or interactive smart boards. The 11.6-inch size balances portability with sufficient screen real estate, and the Full HD resolution is ideal for document processing and online teaching. Custom touch support further enables handwriting input and interactive operations.

Security Monitoring Terminals: Suitable as local display units for video surveillance systems. The all-viewing-angle characteristic allows multiple personnel to monitor feeds simultaneously. The normally black mode reduces power consumption during standby, and the compact module dimensions make it easy to embed into various surveillance hosts or control consoles.

Title标题	11.6 Inch TFT LCD Display11.6英寸TFT LCD显示屏 1920×1080 High Resolution1920×1080高分辨率 250nits Brightness250尼特亮度
Diagonal对角线	11.6"
Resolution分辨率	1920x1080
Display Type显示类型	IPS
Display Mode显示模式	Normally black常黑
Optimal View最佳视角	ALL全部
Touch Screen触摸屏	custom自定义
Module Dimensions (W x H x D) 模块尺寸（宽×高×深）	263.46 × 167.89 × 4.7 / 2.8(mm)263.46 × 167.89 × 4.7 / 2.8（毫米）
Active Area有效显示区域	256.32 × 144.18(mm) (W x H)256.32 × 144.18（毫米）（宽×高）
Luminance (cd/m2)亮度（cd/m²）	250cd/m² (Typ)250坎德拉/平方米（典型值）
Interface接口	EDP
Operating Temperature工作温度	-20~+70℃
Storage Temperature存储温度	-30~++80℃

To ensure the quality of our products, we have implemented a series of quality control measures.

Production process control	We strictly control every aspect of our production process, including material selection, production technology, and equipment maintenance. Our production process has been optimized to ensure that our LCD displays meet the required quality standards.
Automated testing equipment	We have introduced advanced automated testing equipment to comprehensively and quickly test all aspects of our LCD displays. Automated testing equipment increases testing efficiency and accuracy, providing essential support to our quality assurance efforts.
Manual testing	Although automated testing equipment can comprehensively test all aspects of LCD displays, manual testing is still an essential part of our quality assurance process. Our professional-quality management team conducts manual testing on every LCD display to ensure that our products meet the required quality standards.
Sampling inspection	We implement sampling inspection throughout the production process to ensure that each batch of LCD displays meets the required quality standards. Our quality management team conducts sampling inspections at each stage of production.
Quality management system	We have established a comprehensive quality management system, including the development of strict quality standards, the establishment of a sound quality management process, and the training of professional quality management personnel.
Supervision and inspection	We regularly invite third-party inspection agencies to conduct supervision and inspection of our production process and products to ensure that we comply with quality management systems and standards.
After-sales service	We provide comprehensive after-sales service, including product quality guarantee periods, product maintenance, returns, and exchanges. Our after-sales service ensures that consumer rights are protected, increasing customer satisfaction and loyalty.

Can we order samples first?

What about the delivery time?

Is there a minimum quantity limit for samples and production orders?

How will the goods be delivered and how long will it take to arrive?

How to order the LCD module?

Can I print my logo on the LCD screen?

Is the product quality guaranteed?

Example Code

If you’re looking to prototype and test with our display, we offer an example code library to help you get started. This library includes sample code that you can use as a starting point for your own projects.

IC Datasheets

If you need, we will provide IC Datasheets to you to help you complete the development process. With these resources at your fingertips, you can quickly and easily prototype and test your display designs.

Product Specification

Each of our products has a link to download the specification. You can find the product and browse by our TFT LCD display, OLED display, custom display, and LCD controller board, and click the product name to access the product specification details.

Technical Support

We provide the highest quality and most professional technical support services. If you have any issues or need assistance with our LCD screens, our technical support team is always ready to help and support you.

Solution Support

In addition to providing design and manufacturing services for LCD screens, we also provide comprehensive program support services to help customers realize their unique display requirements. Our scheme support services include comprehensive support from preliminary concept to complete design

Custom support

We provide a variety of customization options according to customer needs, such as screen size, resolution, brightness, contrast, touch technology, appearance design, etc. Our team can also provide technical guidance and design advice to help customers choose the best LCD solution.
