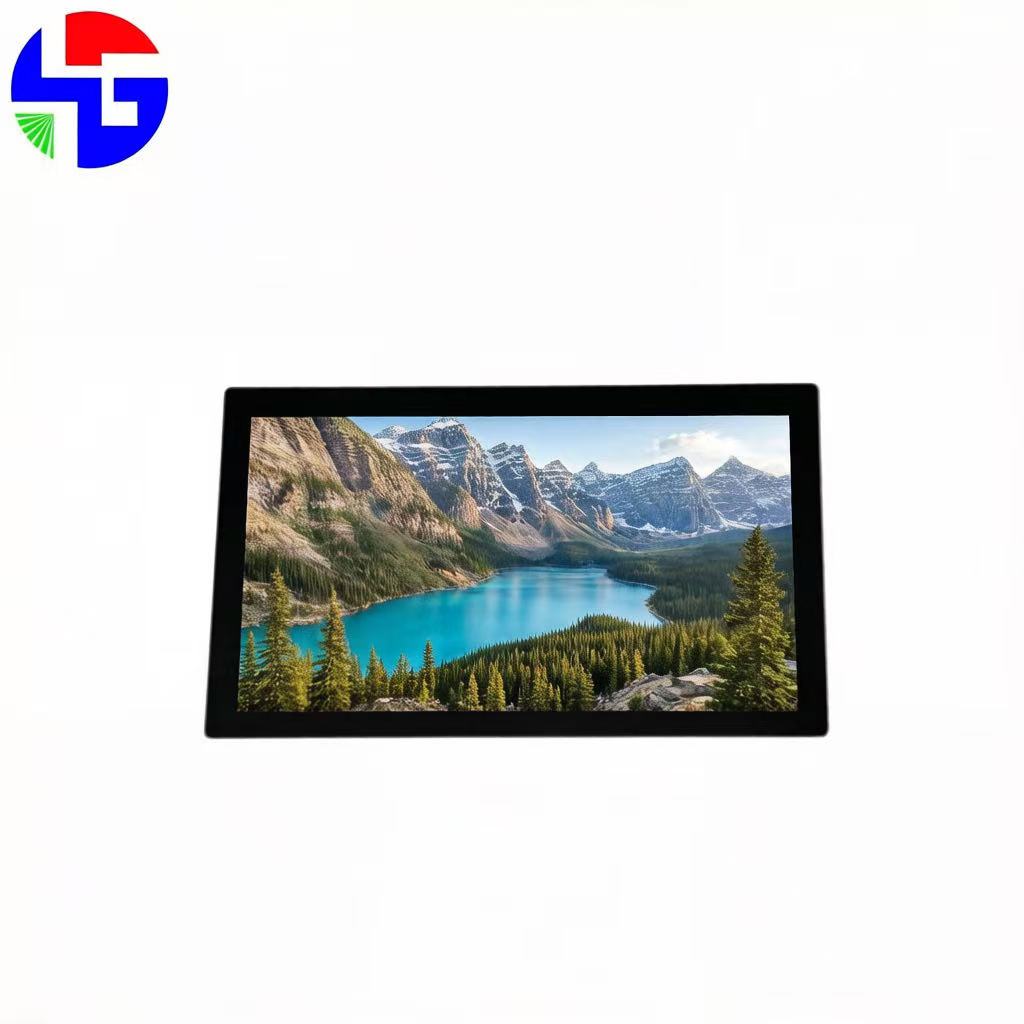

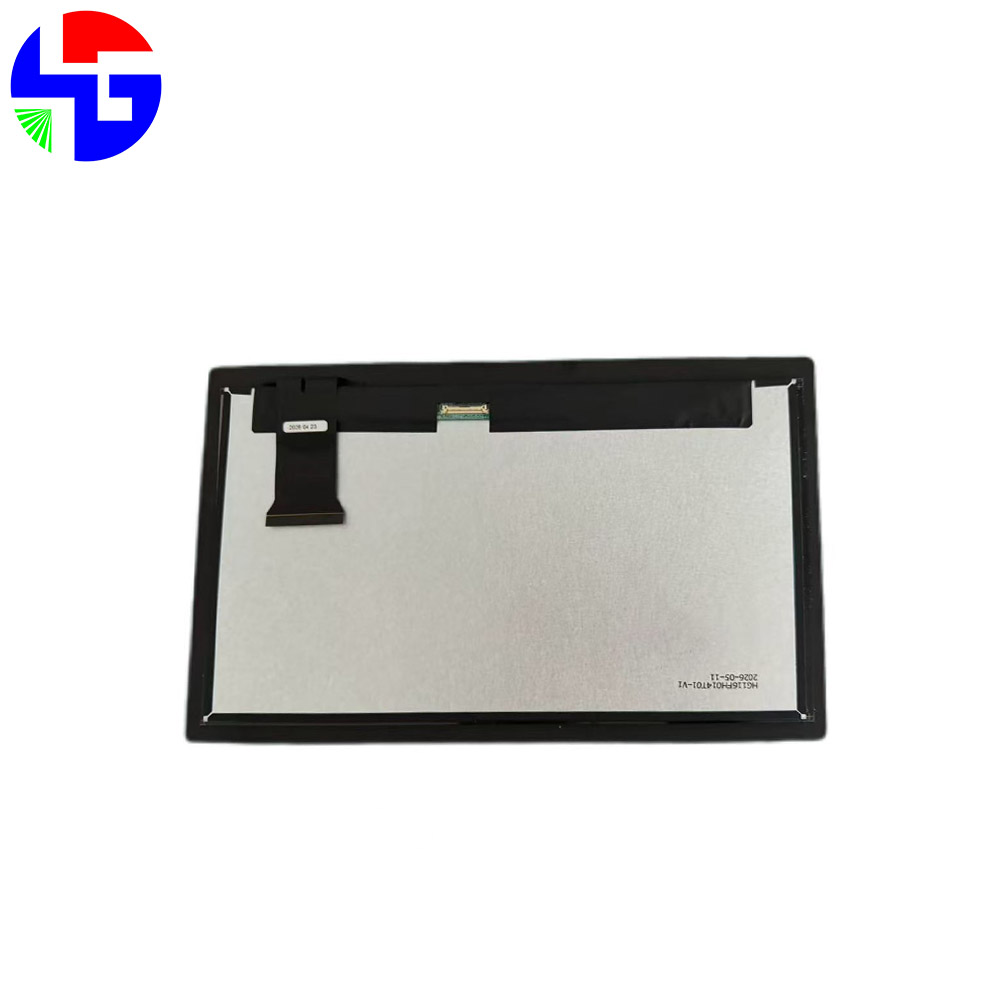

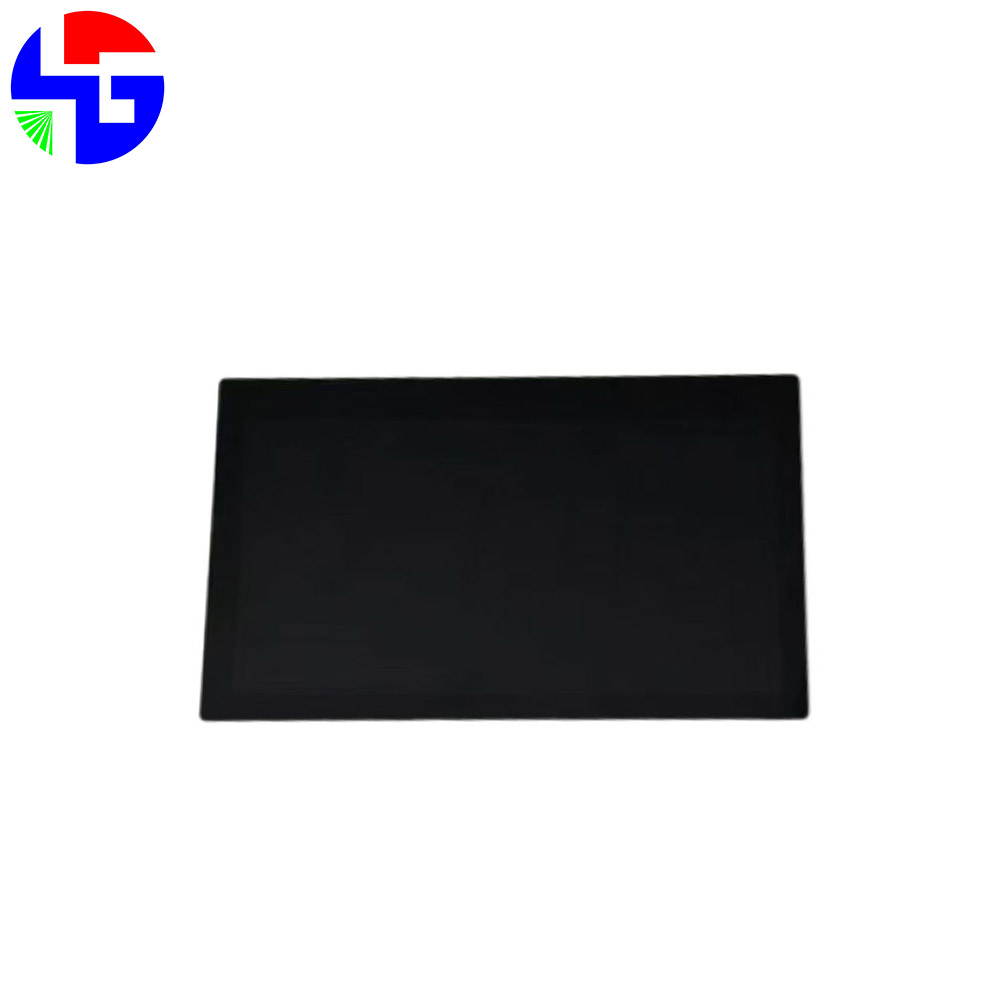

11.6 Inch TFT LCD Display 1920×1080 High Resolution 250nits Brightness

SKU HG116FH014T01 Categories Application, Auto Displays, Custom Displays, EDP Interafce, Handheld Displays, High Resolution Displays, Industrial Displays, IPS Displays, LCD Controller Boards, Medical Displays, Military Displays, Security Displays, Smart Home Displays, Square Displays, TFT LCD Displays

Model: HG116FH014T01

Size: 11.6″

Diagonal Pixels:1920X1080

Display Type: IPS

Touchscreen:TOUCH

Interface:EDP

Resources: Specifications | 2D Render

This product is a 11.6-inch TFT LCD display featuring an IPS (In-Plane Switching) panel technology, designed for superior visual performance and durability. It delivers a sharp Full HD resolution of 1920 x 1080, ensuring crisp and detailed imagery suitable for high-definition content. The screen utilizes a Normally Black display mode with All-direction viewing angles, providing consistent color and contrast from any perspective. With a typical luminance of 250 cd/m², it offers clear visibility in standard lighting conditions.本产品是一款配备IPS（平面转换）面板技术的11.6英寸TFT LCD显示屏，旨在提供卓越的视觉表现与耐用性。它拥有清晰的全高清分辨率1920×1080，可呈现锐利细腻的画面，非常适合观看高清内容。该屏幕采用常黑式显示模式，具备全视角可视特性，无论从哪个角度观看，都能呈现稳定的色彩与对比度。其典型亮度为250 cd/m²，在标准光照条件下亦能确保清晰的显示效果。

Engineered for versatility, the module features a compact dimensional outline of 263.4 x 157.52 x 2.6 mm and an active area of 256.320 x 144.180 mm. It connects via a standard EDP interface and supports Touch functionality for interactive applications.该模块专为多功能性而设计，外形尺寸紧凑，仅为263.4 × 157.52 × 2.6毫米，有效显示区域为256.320 × 144.180毫米。它通过标准的EDP接口连接，并支持触控功能，适用于各类交互式应用。

Title	11.6 Inch TFT LCD Display11.6英寸TFT液晶显示屏 1920×1080 High Resolution 250nits Brightness
Diagonal	11.6 Inch
Resolution	1920 x 1080
Display Type	IPS
Display Mode	Normally Black
Optimal View最佳视角	ALL全部
Touch Screen触摸屏	Touch触控
Dimensional outline尺寸轮廓	263.4(H) X157.52 (V)X2.6(D) (mm)263.4（高）×157.52（宽）×2.6（厚）（毫米）
Active Area有效显示区域	256.320 (H) × 144.180(V)(mm)256.320（高）×144.180（宽）（毫米）
Luminance (cd/m2)亮度（cd/m²）	250 cd/m² (Typ)250 cd/m²（典型值）
Interface接口	EDP
Operating Temperature工作温度	-20~+70℃
Storage Temperature	-30~+80℃

To ensure the quality of our products, we have implemented a series of quality control measures.

Production process control	We strictly control every aspect of our production process, including material selection, production technology, and equipment maintenance. Our production process has been optimized to ensure that our LCD displays meet the required quality standards.
Automated testing equipment	We have introduced advanced automated testing equipment to comprehensively and quickly test all aspects of our LCD displays. Automated testing equipment increases testing efficiency and accuracy, providing essential support to our quality assurance efforts.
Manual testing	Although automated testing equipment can comprehensively test all aspects of LCD displays, manual testing is still an essential part of our quality assurance process. Our professional-quality management team conducts manual testing on every LCD display to ensure that our products meet the required quality standards.
Sampling inspection	We implement sampling inspection throughout the production process to ensure that each batch of LCD displays meets the required quality standards. Our quality management team conducts sampling inspections at each stage of production.
Quality management system	We have established a comprehensive quality management system, including the development of strict quality standards, the establishment of a sound quality management process, and the training of professional quality management personnel.
Supervision and inspection	We regularly invite third-party inspection agencies to conduct supervision and inspection of our production process and products to ensure that we comply with quality management systems and standards.
After-sales service	We provide comprehensive after-sales service, including product quality guarantee periods, product maintenance, returns, and exchanges. Our after-sales service ensures that consumer rights are protected, increasing customer satisfaction and loyalty.

Can we order samples first?

What about the delivery time?

Is there a minimum quantity limit for samples and production orders?

How will the goods be delivered and how long will it take to arrive?

How to order the LCD module?

Can I print my logo on the LCD screen?

Is the product quality guaranteed?

Example Code

If you’re looking to prototype and test with our display, we offer an example code library to help you get started. This library includes sample code that you can use as a starting point for your own projects.

IC Datasheets

If you need, we will provide IC Datasheets to you to help you complete the development process. With these resources at your fingertips, you can quickly and easily prototype and test your display designs.

Product Specification

Each of our products has a link to download the specification. You can find the product and browse by our TFT LCD display, OLED display, custom display, and LCD controller board, and click the product name to access the product specification details.

Technical Support

We provide the highest quality and most professional technical support services. If you have any issues or need assistance with our LCD screens, our technical support team is always ready to help and support you.

Solution Support

In addition to providing design and manufacturing services for LCD screens, we also provide comprehensive program support services to help customers realize their unique display requirements. Our scheme support services include comprehensive support from preliminary concept to complete design

Custom support

We provide a variety of customization options according to customer needs, such as screen size, resolution, brightness, contrast, touch technology, appearance design, etc. Our team can also provide technical guidance and design advice to help customers choose the best LCD solution.
