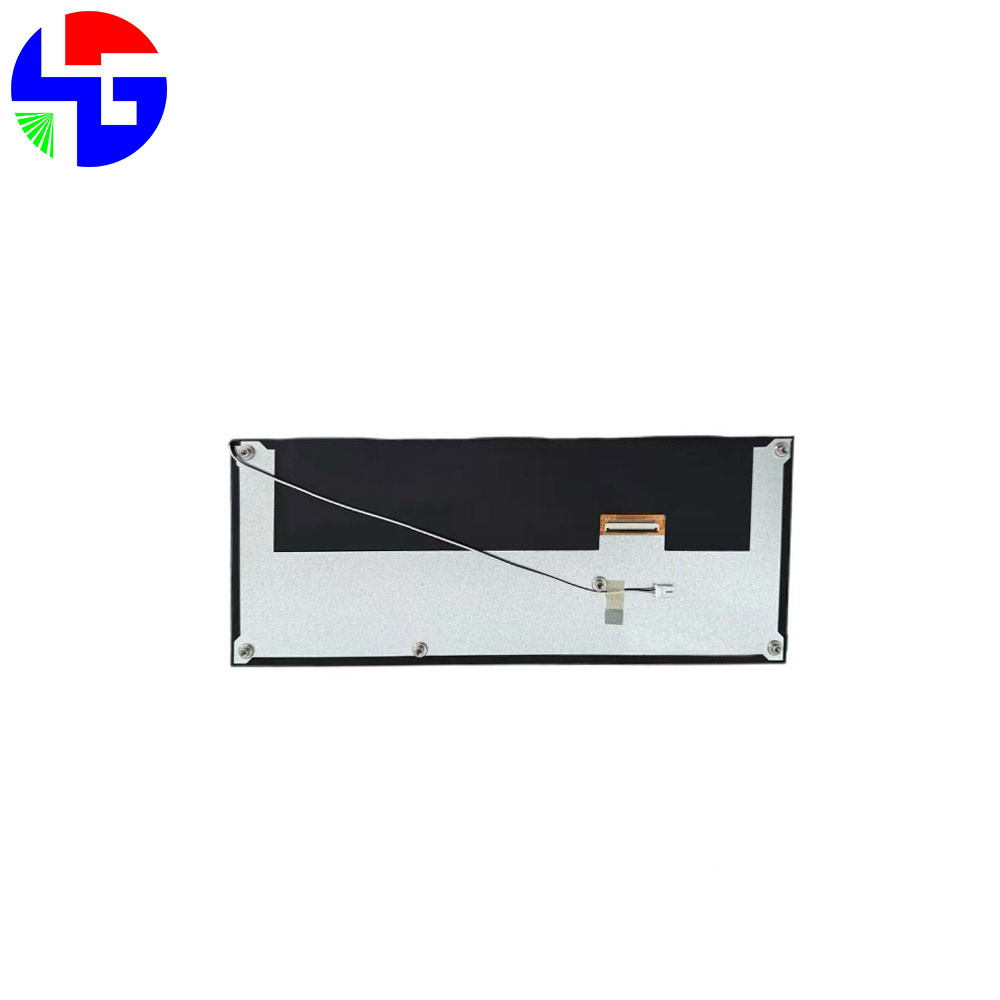

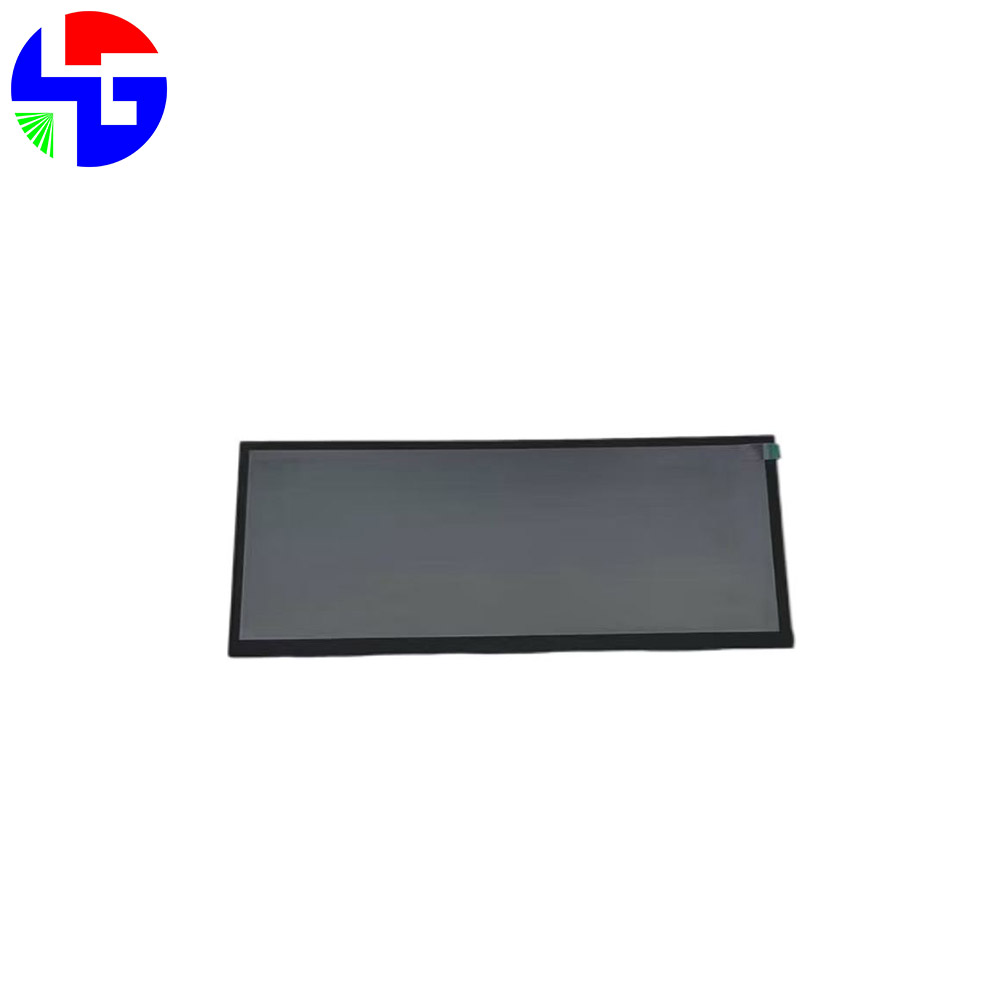

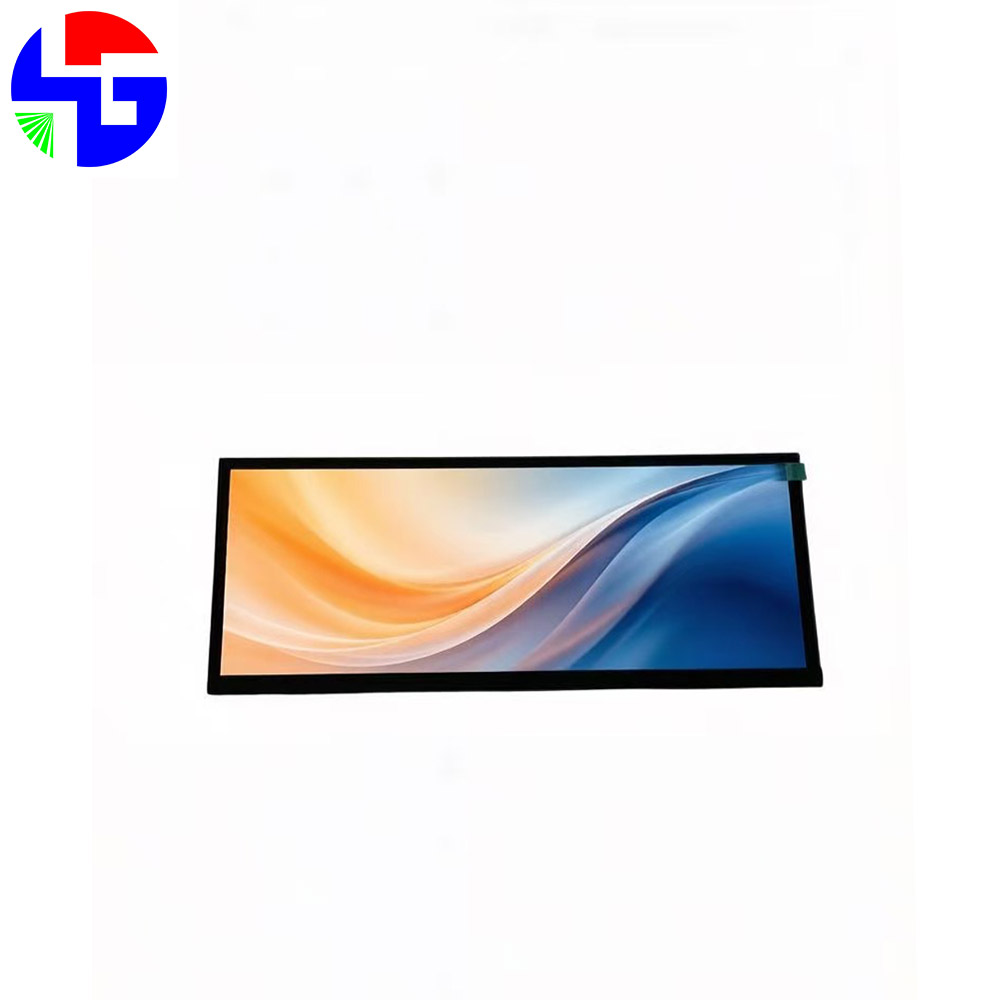

HG123HD012
Size: 12.3 “
Diagonal :1920x720Pixels
Display Type: IPS Display
Touchscreen:Custom
Interface:LVDS
Resources: Specifications | 2D Render
HG123HD012 | 12.3 inch IPS TFT LCD Display1920×720 Resolution | 700cd/m² Brightness | LVDS InterfaceHG123HD012| 12.3 英寸 IPS TFT LCD 显示屏 1920×720 分辨率 | 700cd/m² 亮度 | LVDS 接口
This 12.3-inch IPS TFT LCD Display (HG123HD012) features a 1920×720 high resolution with 700cd/m² typical luminance, delivering clear, vivid visuals with excellent readability.这款12.3英寸IPS TFT LCD显示屏（HG123HD012）具有1920×720的高分辨率，典型亮度为700cd/m²，可呈现清晰、鲜艳的视觉效果，具备出色的可读性。
Adopting IPS technology with Normally Black display mode, it offers wide viewing angles of 80/80/80/80 (Typ.), ensuring consistent image quality from all perspectives.采用IPS技术，搭配常规黑屏显示模式，其视角宽广，为80/80/80/80（典型值），确保从各个角度观看都能呈现一致的画质。
Equipped with a reliable LVDS interface for stable data transmission, the module dimensions are 309.5(H) × 127(V) × 5.8(D) mm, with an active display area of 292.032(H) × 109.512(V) mm.该模块配备可靠的LVDS接口，可实现稳定的数据传输，其尺寸为309.5（高）×127（宽）×5.8（厚）毫米，有效显示区域为292.032（高）×109.512（宽）毫米。
Operating reliably across a wide temperature range of-20~+70℃, with a storage temperature range of -30~+80℃, it adapts perfectly to harsh environments. Custom touch screen solutions are also available to meet diverse project requirements.在-20~+70℃的宽温度范围内可靠运行，存储温度范围为-30~+80℃，完美适应恶劣环境。同时，我们还提供定制化触摸屏解决方案，以满足多样化的项目需求。
Ideal for automotive dashboards, industrial control panels, rugged devices, and outdoor applications requiring high-performance display solutions.
Title标题 | 12.3inch TFT LCD Display12.3英寸TFT LCD显示屏 1920x720Resolution1920x720分辨率 700 Luminance700亮度 |
Diagonal对角线 | 12.3 inch12.3英寸 |
Resolution分辨率 | 1920x720 |
Display Type显示类型 | IPS |
Display Mode | Normally Black |
Optimal View | 80/80/80/80(typ.) |
Touch Screen触摸屏 | Custom自定义 |

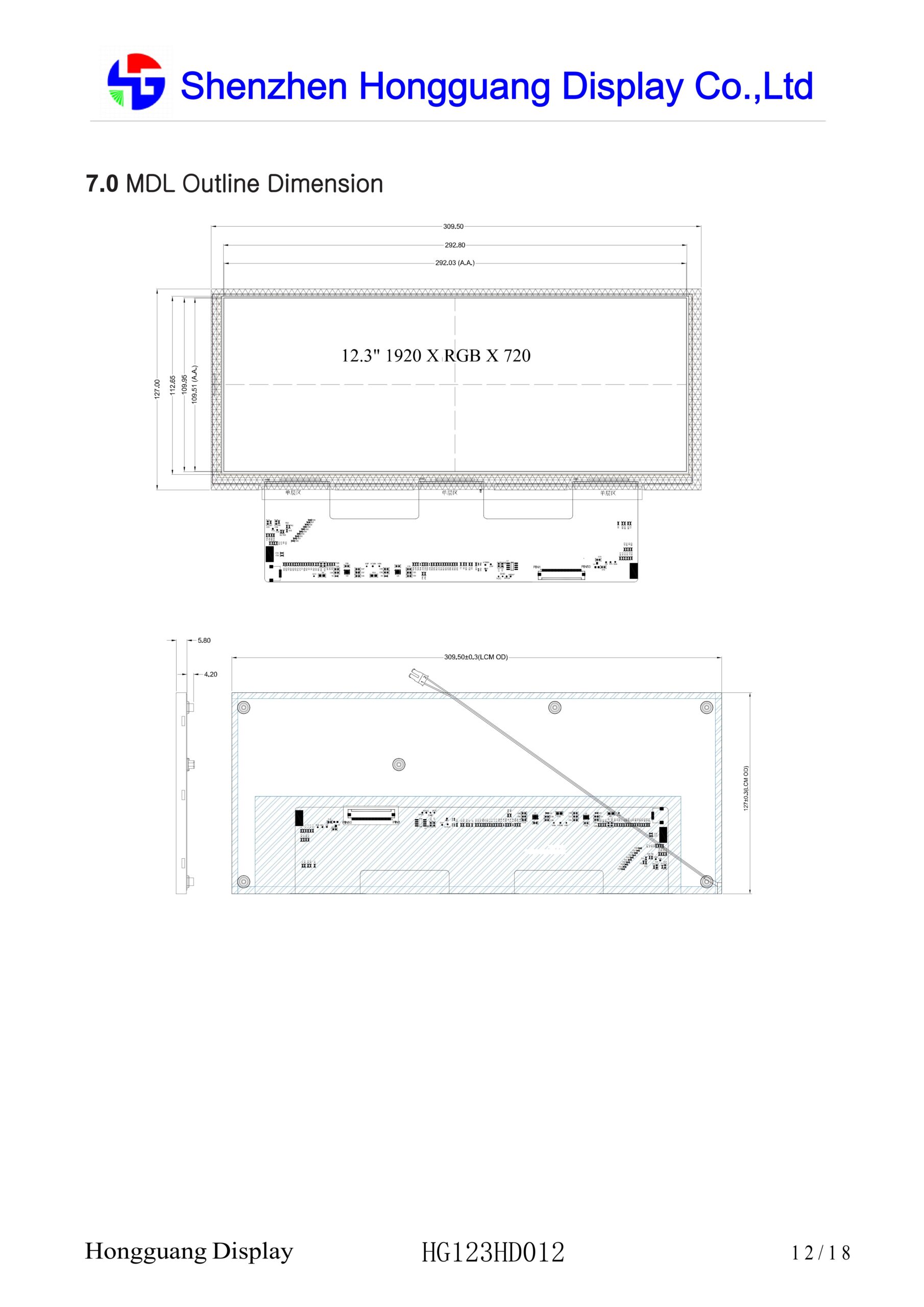

Module Dimensions (mm)模块尺寸（毫米） | 309.5(H)x127(V)x5.8(D)309.5（高）×127（宽）×5.8（厚） |
Active Area有效区域 | 292.032(H)x109.512(V)292.032（高）×109.512（宽） |
Luminance (cd/m2)亮度（cd/m²） | 700TYP700典型 |
Interface接口 | LVDS |
Operating Temperature工作温度 | -20~+70℃ |
Storage Temperature存储温度 | -30~80℃ |
To ensure the quality of our products, we have implemented a series of quality control measures.
| Production process control | We strictly control every aspect of our production process, including material selection, production technology, and equipment maintenance. Our production process has been optimized to ensure that our LCD displays meet the required quality standards. |
| Automated testing equipment | We have introduced advanced automated testing equipment to comprehensively and quickly test all aspects of our LCD displays. Automated testing equipment increases testing efficiency and accuracy, providing essential support to our quality assurance efforts. |
| Manual testing | Although automated testing equipment can comprehensively test all aspects of LCD displays, manual testing is still an essential part of our quality assurance process. Our professional-quality management team conducts manual testing on every LCD display to ensure that our products meet the required quality standards. |
| Sampling inspection | We implement sampling inspection throughout the production process to ensure that each batch of LCD displays meets the required quality standards. Our quality management team conducts sampling inspections at each stage of production. |
| Quality management system | We have established a comprehensive quality management system, including the development of strict quality standards, the establishment of a sound quality management process, and the training of professional quality management personnel. |
| Supervision and inspection | We regularly invite third-party inspection agencies to conduct supervision and inspection of our production process and products to ensure that we comply with quality management systems and standards. |
| After-sales service | We provide comprehensive after-sales service, including product quality guarantee periods, product maintenance, returns, and exchanges. Our after-sales service ensures that consumer rights are protected, increasing customer satisfaction and loyalty. |
If you’re looking to prototype and test with our display, we offer an example code library to help you get started. This library includes sample code that you can use as a starting point for your own projects.
If you need, we will provide IC Datasheets to you to help you complete the development process. With these resources at your fingertips, you can quickly and easily prototype and test your display designs.
Each of our products has a link to download the specification. You can find the product and browse by our TFT LCD display, OLED display, custom display, and LCD controller board, and click the product name to access the product specification details.
We provide the highest quality and most professional technical support services. If you have any issues or need assistance with our LCD screens, our technical support team is always ready to help and support you.
In addition to providing design and manufacturing services for LCD screens, we also provide comprehensive program support services to help customers realize their unique display requirements. Our scheme support services include comprehensive support from preliminary concept to complete design
We provide a variety of customization options according to customer needs, such as screen size, resolution, brightness, contrast, touch technology, appearance design, etc. Our team can also provide technical guidance and design advice to help customers choose the best LCD solution.
