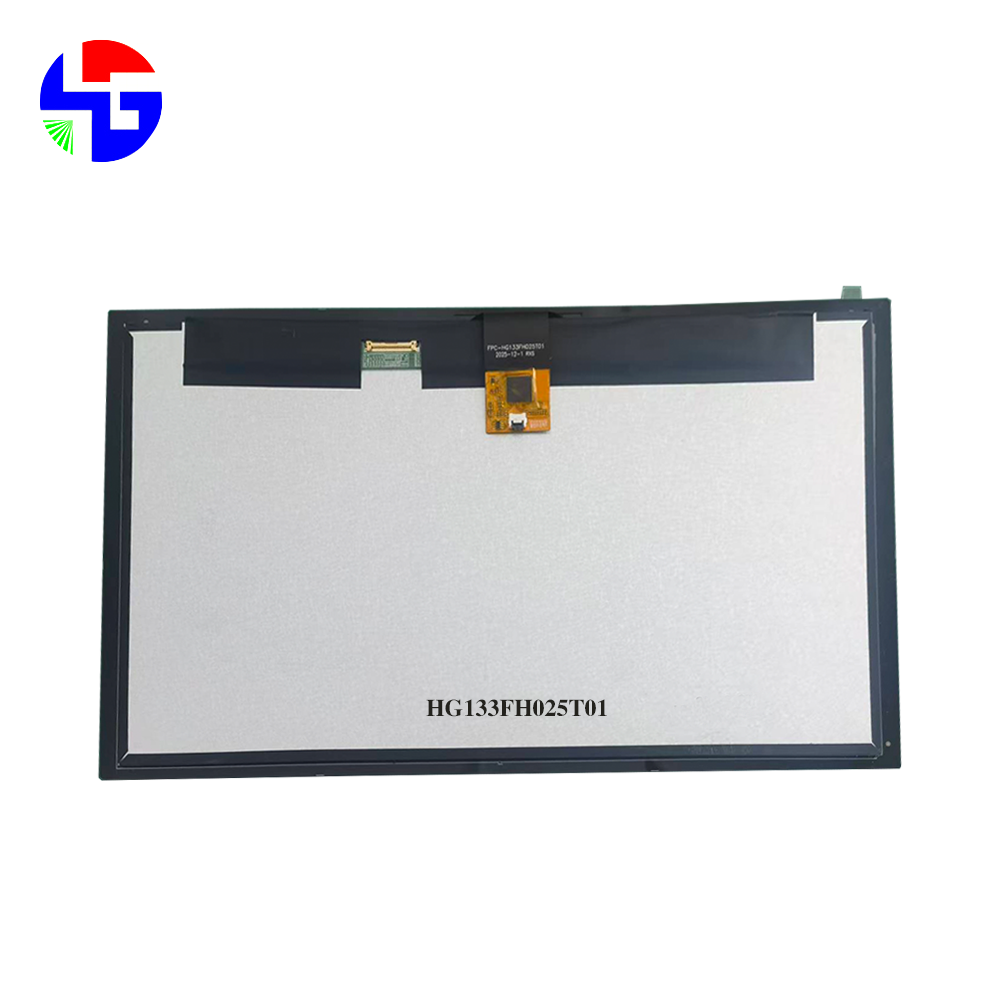

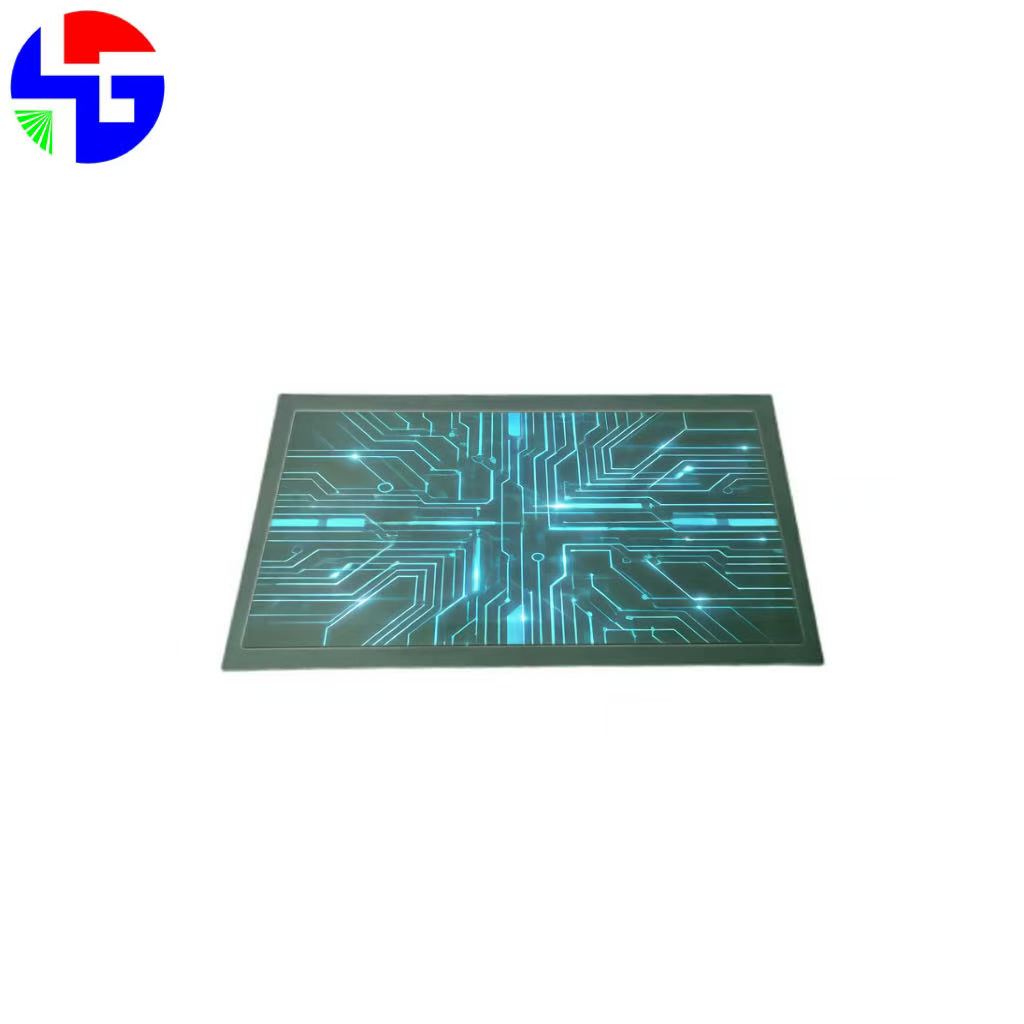

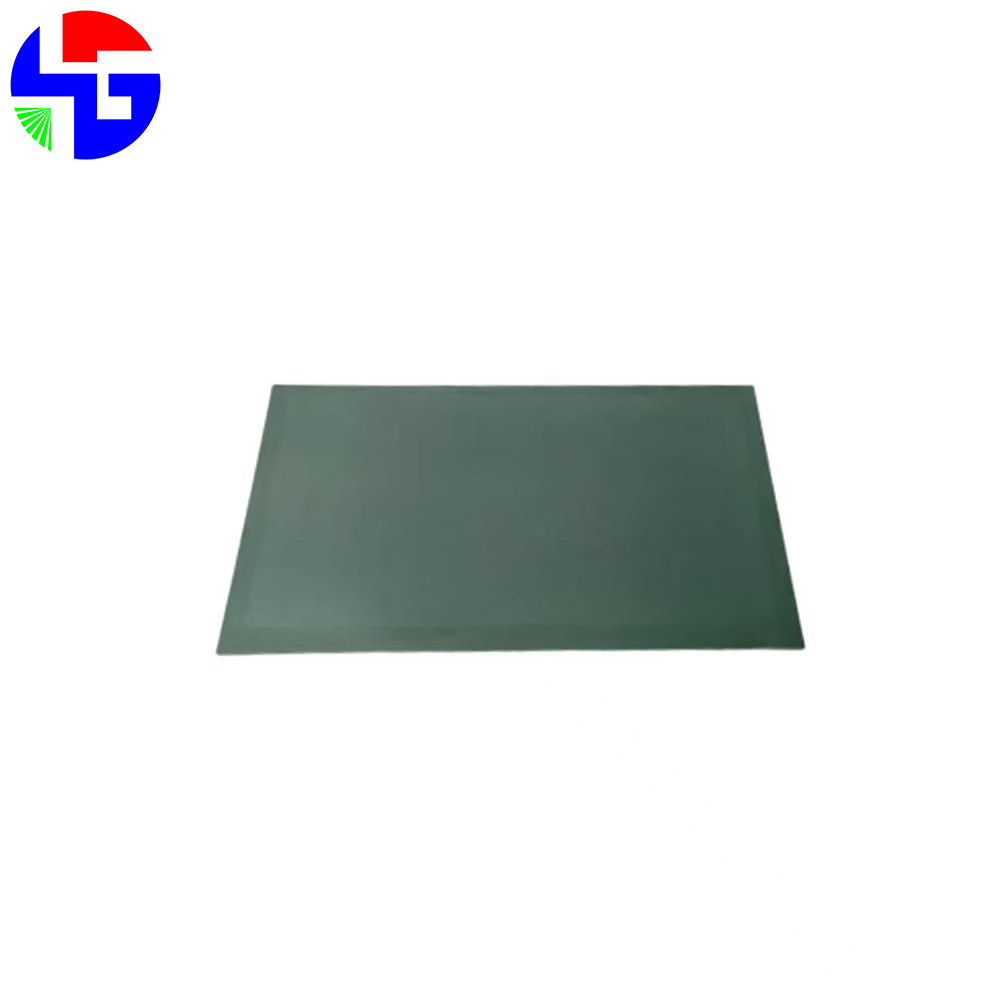

Model: HG133FH025T01
Size: 13.3 “
Diagonal : 1920X1080 Pixels
Display Type: IPS Display
Touchscreen:touch
Interface:EDP
Resources: Specifications | 2D Render
HG133FH025T01 | 13.3 inch TFT LCD Module | EDP |1920X1080| 500 BrightnessHG133FH025T01| 13.3英寸TFT LCD模块|EDP|1920X1080| 500亮度
The HG133FH025T01 is a premium 13.3-inch TFT LCD module featuring a high-definition 1920x1080 resolution and advanced IPS technology to ensure superior color accuracy and wide viewing angles in a Normally Black display mode. Engineered for versatility, this unit incorporates a robust EDP interface, a high brightness rating of 500 cd/m² for enhanced visibility, and integrated touch screen functionality, all housed within a compact dimensional outline of 318 x 190.4 mm with an active area of 293.76 x 165.24 mm. This high-performance display solution is ideally suited for demanding commercial and industrial applications such as interactive kiosks, medical monitoring equipment, automotive infotainment systems, and portable professional devices where reliable operation across a wide temperature range of -20°C to +70°C is essential.HG133FH025T01是一款高端13.3英寸TFT LCD模组，配备1920x1080高分辨率和先进的IPS技术，可在常规黑显示模式下实现卓越的色彩准确性和宽广的视角。该产品设计灵活多样，采用坚固的EDP接口，亮度高达500 cd/m²，确保更佳的可视效果，并内置触摸屏功能。整机尺寸紧凑，为318 x 190.4毫米，有效显示区域为293.76 x 165.24毫米。这款高性能显示解决方案非常适合对性能要求较高的商用和工业应用，例如互动式自助服务终端、医疗监护设备、汽车信息娱乐系统以及便携式专业设备，在这些应用中，确保在-20°C至+70°C的宽温度范围内可靠运行至关重要。
Title | 13.3inch TFT LCD module,EDP,1920X1080, 500Brightness |
Diagonal | 13.3 inch |
Resolution | 1920X1080 |
Display Type | IPS |
Display Mode | Normally Black |
Optimal View | ALL |
Touch Screen | touch |
Dimensional outline | 318(H) x190.4 (V) x4.6(D) (mm) |
Active Area | 293.76 (H) x 165.24 (V)(mm) |
Luminance (cd/m2) | EDP |
Interface | 500 cd/m²(typ) |
Operating Temperature | -20°C ~ +70°C |
Storage Temperature | -30°C ~ +80°C |
To ensure the quality of our products, we have implemented a series of quality control measures.
| Production process control | We strictly control every aspect of our production process, including material selection, production technology, and equipment maintenance. Our production process has been optimized to ensure that our LCD displays meet the required quality standards. |
| Automated testing equipment | We have introduced advanced automated testing equipment to comprehensively and quickly test all aspects of our LCD displays. Automated testing equipment increases testing efficiency and accuracy, providing essential support to our quality assurance efforts. |
| Manual testing | Although automated testing equipment can comprehensively test all aspects of LCD displays, manual testing is still an essential part of our quality assurance process. Our professional-quality management team conducts manual testing on every LCD display to ensure that our products meet the required quality standards. |
| Sampling inspection | We implement sampling inspection throughout the production process to ensure that each batch of LCD displays meets the required quality standards. Our quality management team conducts sampling inspections at each stage of production. |
| Quality management system | We have established a comprehensive quality management system, including the development of strict quality standards, the establishment of a sound quality management process, and the training of professional quality management personnel. |
| Supervision and inspection | We regularly invite third-party inspection agencies to conduct supervision and inspection of our production process and products to ensure that we comply with quality management systems and standards. |
| After-sales service | We provide comprehensive after-sales service, including product quality guarantee periods, product maintenance, returns, and exchanges. Our after-sales service ensures that consumer rights are protected, increasing customer satisfaction and loyalty. |
If you’re looking to prototype and test with our display, we offer an example code library to help you get started. This library includes sample code that you can use as a starting point for your own projects.
If you need, we will provide IC Datasheets to you to help you complete the development process. With these resources at your fingertips, you can quickly and easily prototype and test your display designs.
Each of our products has a link to download the specification. You can find the product and browse by our TFT LCD display, OLED display, custom display, and LCD controller board, and click the product name to access the product specification details.
We provide the highest quality and most professional technical support services. If you have any issues or need assistance with our LCD screens, our technical support team is always ready to help and support you.
In addition to providing design and manufacturing services for LCD screens, we also provide comprehensive program support services to help customers realize their unique display requirements. Our scheme support services include comprehensive support from preliminary concept to complete design
We provide a variety of customization options according to customer needs, such as screen size, resolution, brightness, contrast, touch technology, appearance design, etc. Our team can also provide technical guidance and design advice to help customers choose the best LCD solution.
