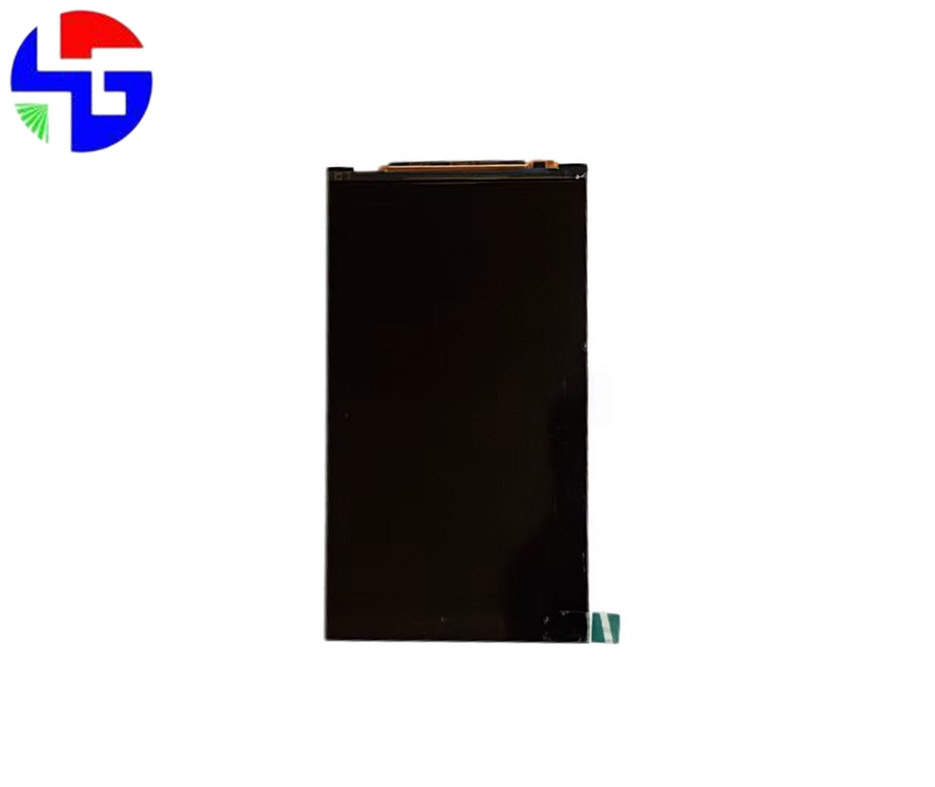

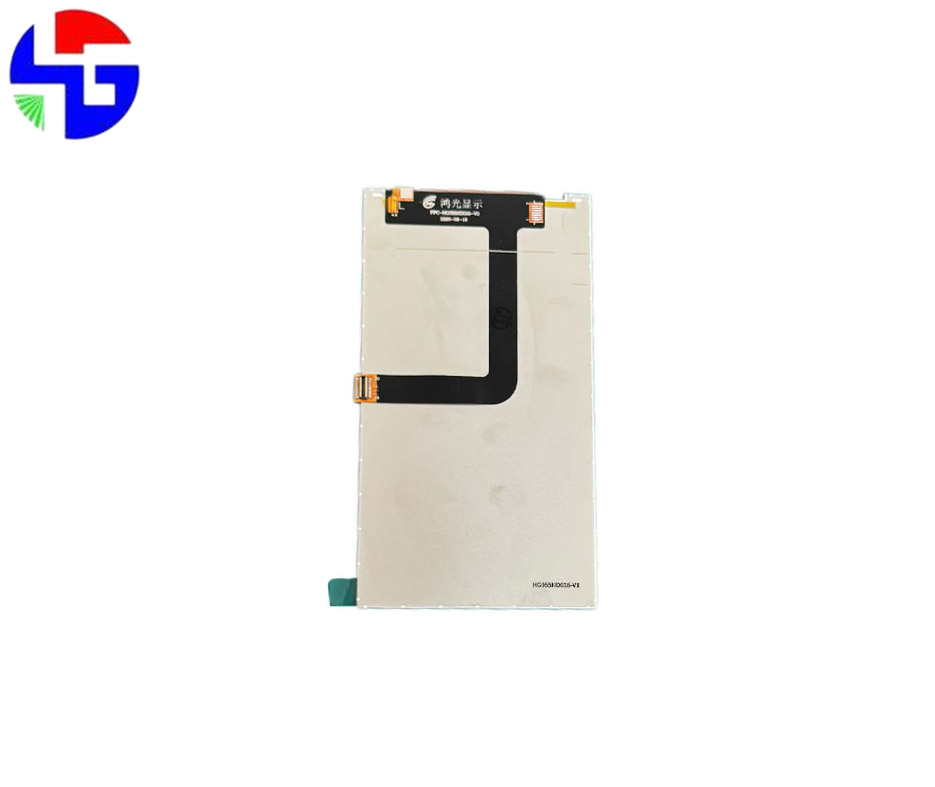

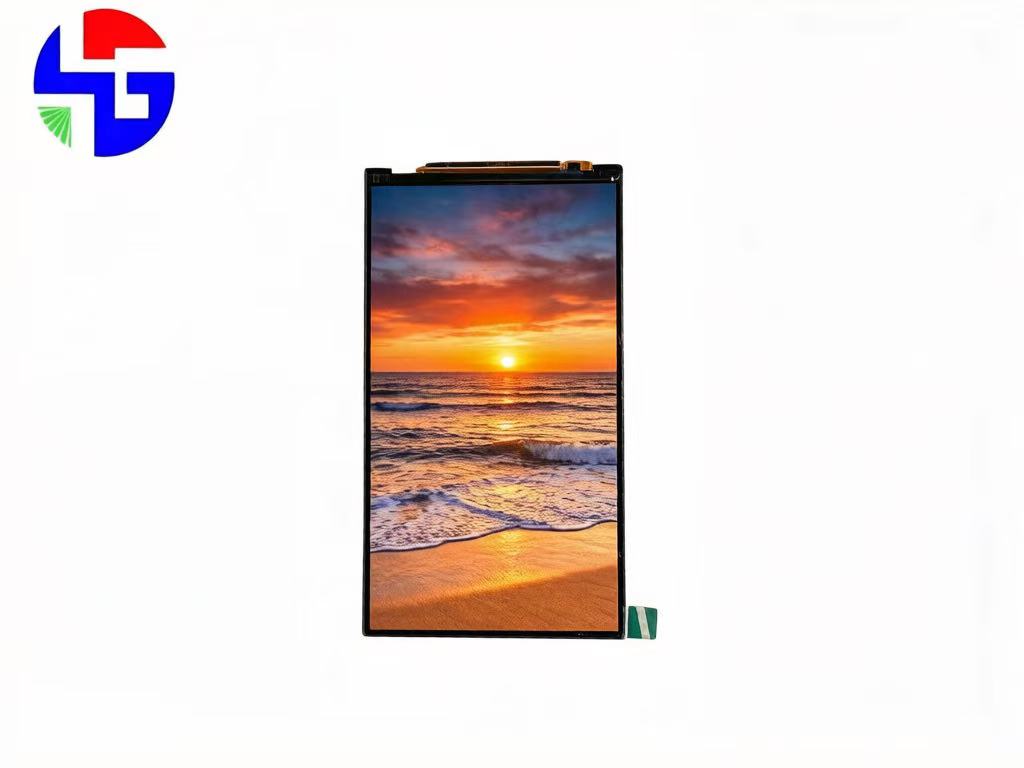

Model: HG055HD016-V1
Size: 5.5″
Diagonal Pixels:720×1280
Display Type: IPS
Touchscreen:custom
Interface:MIPI
Resources: Specifications | 2D Render
HG055HD016-V1 | 5.5 inch TFT LCD Display| MIPI | IPS | 720x1280 high resolution |400 Brightness |HG055HD016-V1| 5.5英寸TFT LCD显示屏| MIPI | IPS | 720x1280高分辨率 |400亮度 |
This 5.5-inch TFT LCD display features a high resolution of 720x1280 and utilizes IPS technology to ensure an optimal viewing angle from all directions. With a typical luminance of 400 cd/m² and a MIPI interface, it delivers clear visuals in a compact module measuring 70.65 x 129.20 x 1.55 mm. Designed for reliability with an operating temperature range of -20°C to +70°C, this screen is well-suited for industrial control panels, medical devices, and embedded systems requiring stable performance in demanding environments这款5.5英寸TFT LCD显示屏具有720x1280的高分辨率，并采用IPS技术，确保从各个方向都能获得最佳视角。其典型亮度为400 cd/m²，配备MIPI接口，可在尺寸仅为70.65 x 129.20 x 1.55毫米的紧凑型模块中呈现清晰的视觉效果。该屏幕专为可靠性而设计，工作温度范围为-20°C至+70°C，非常适合用于工业控制面板、医疗设备以及需要在严苛环境中保持稳定性能的嵌入式系统
Title | 5.5 Inch TFT LCD Display5.5英寸TFT液晶显示屏 720x1280 High Resolution IPS,MIPI,400 Brightness |
Diagonal | 5.5" |
Resolution | 720x1280 |
Display Type | IPS |
Display Mode | Normally Black |
Optimal View | ALL |
Touch Screen | custom |
Module area | 70.65（H)*129.20(V)*1.55(T)(mm) |
Active Area | 68.04(H)*120.96 (V)(mm) |
Luminance (cd/m2)亮度（cd/m²） | 400cd/m2(TYP)400cd/m²（典型值） |
Interface接口 | MIPI |
Operating Temperature工作温度 | -20~70℃ |
Storage Temperature存储温度 | -30~80℃ |
To ensure the quality of our products, we have implemented a series of quality control measures.
| Production process control | We strictly control every aspect of our production process, including material selection, production technology, and equipment maintenance. Our production process has been optimized to ensure that our LCD displays meet the required quality standards. |
| Automated testing equipment | We have introduced advanced automated testing equipment to comprehensively and quickly test all aspects of our LCD displays. Automated testing equipment increases testing efficiency and accuracy, providing essential support to our quality assurance efforts. |
| Manual testing | Although automated testing equipment can comprehensively test all aspects of LCD displays, manual testing is still an essential part of our quality assurance process. Our professional-quality management team conducts manual testing on every LCD display to ensure that our products meet the required quality standards. |
| Sampling inspection | We implement sampling inspection throughout the production process to ensure that each batch of LCD displays meets the required quality standards. Our quality management team conducts sampling inspections at each stage of production. |
| Quality management system | We have established a comprehensive quality management system, including the development of strict quality standards, the establishment of a sound quality management process, and the training of professional quality management personnel. |
| Supervision and inspection | We regularly invite third-party inspection agencies to conduct supervision and inspection of our production process and products to ensure that we comply with quality management systems and standards. |
| After-sales service | We provide comprehensive after-sales service, including product quality guarantee periods, product maintenance, returns, and exchanges. Our after-sales service ensures that consumer rights are protected, increasing customer satisfaction and loyalty. |
If you’re looking to prototype and test with our display, we offer an example code library to help you get started. This library includes sample code that you can use as a starting point for your own projects.
If you need, we will provide IC Datasheets to you to help you complete the development process. With these resources at your fingertips, you can quickly and easily prototype and test your display designs.
Each of our products has a link to download the specification. You can find the product and browse by our TFT LCD display, OLED display, custom display, and LCD controller board, and click the product name to access the product specification details.
We provide the highest quality and most professional technical support services. If you have any issues or need assistance with our LCD screens, our technical support team is always ready to help and support you.
In addition to providing design and manufacturing services for LCD screens, we also provide comprehensive program support services to help customers realize their unique display requirements. Our scheme support services include comprehensive support from preliminary concept to complete design
We provide a variety of customization options according to customer needs, such as screen size, resolution, brightness, contrast, touch technology, appearance design, etc. Our team can also provide technical guidance and design advice to help customers choose the best LCD solution.
