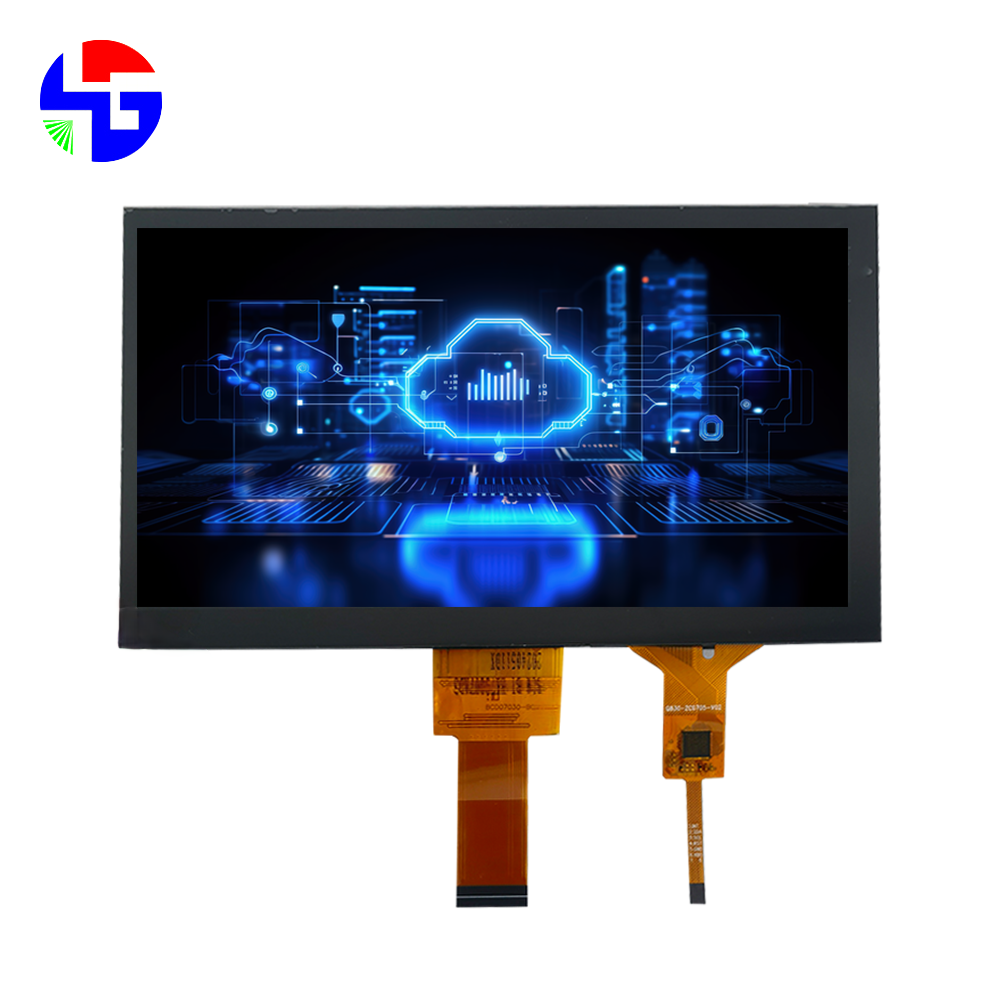

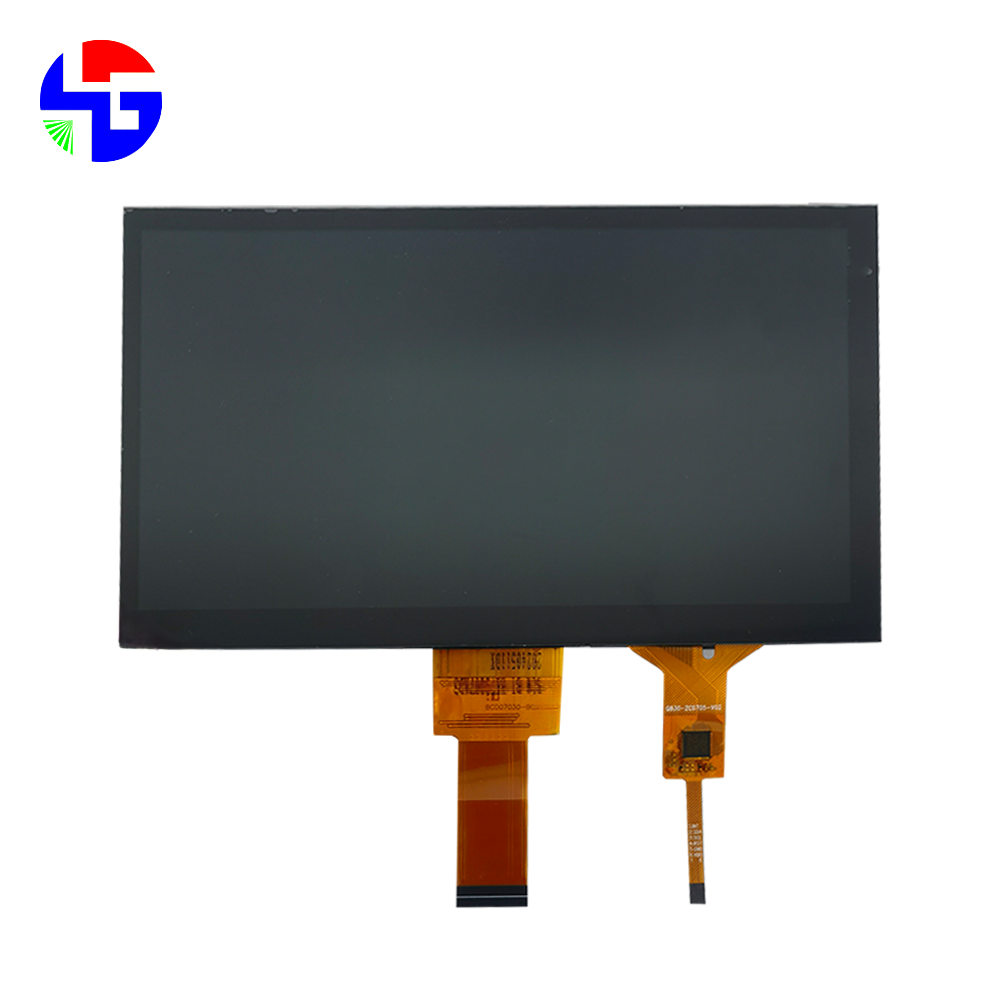

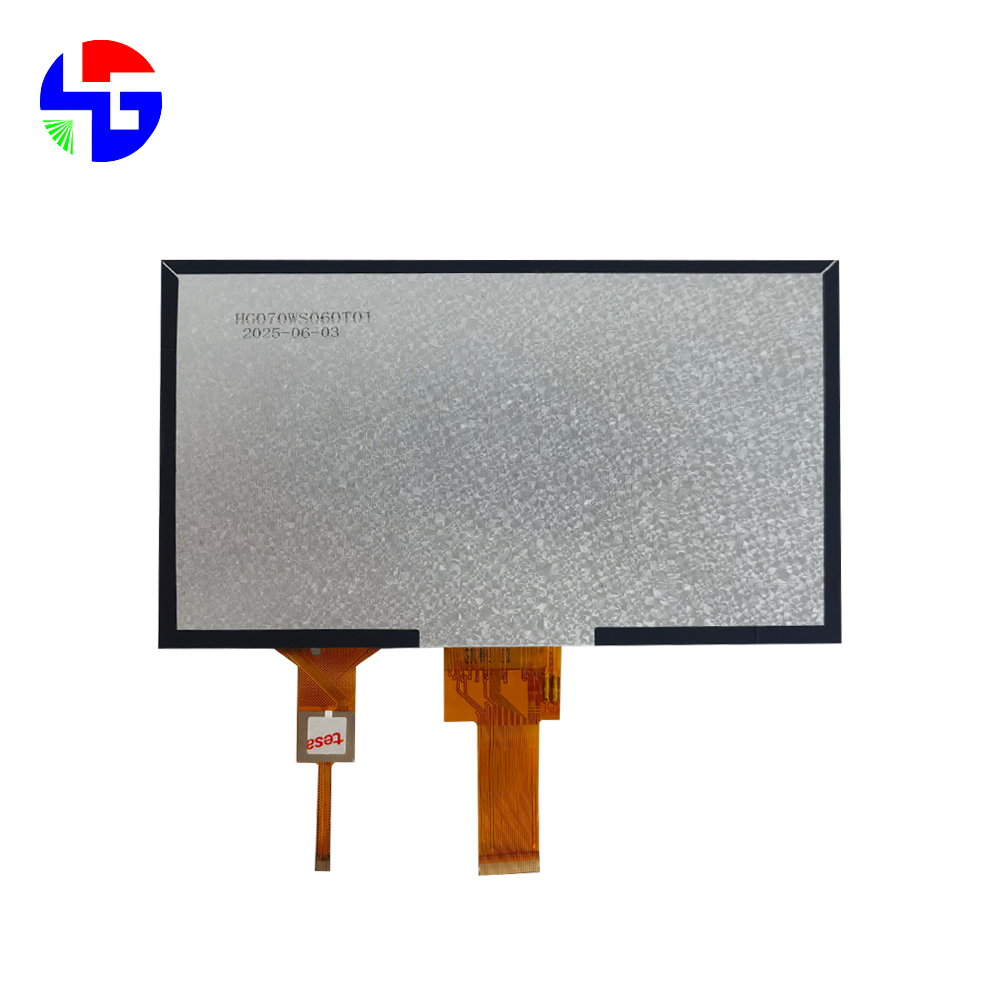

7-inch TFT LCD module, IPS, high brightness, 1024x600 pixels, touchscreen

Categories Application, Auto Displays, Capacitive Touch Screen, Handheld Displays, High Brightness Displays, Industrial Displays, IPS Displays, Medical Displays, Military Displays, MIPI Interface, Security Displays, Smart Home Displays, Standard Displays, TFT LCD Displays, Touch Screen

Model: HG70WS060T01

Size: 7.0” Diagonal | 1024*600 Pixels

Display Type: IPS Display

Touchscreen: CTP

Interface: MIPI

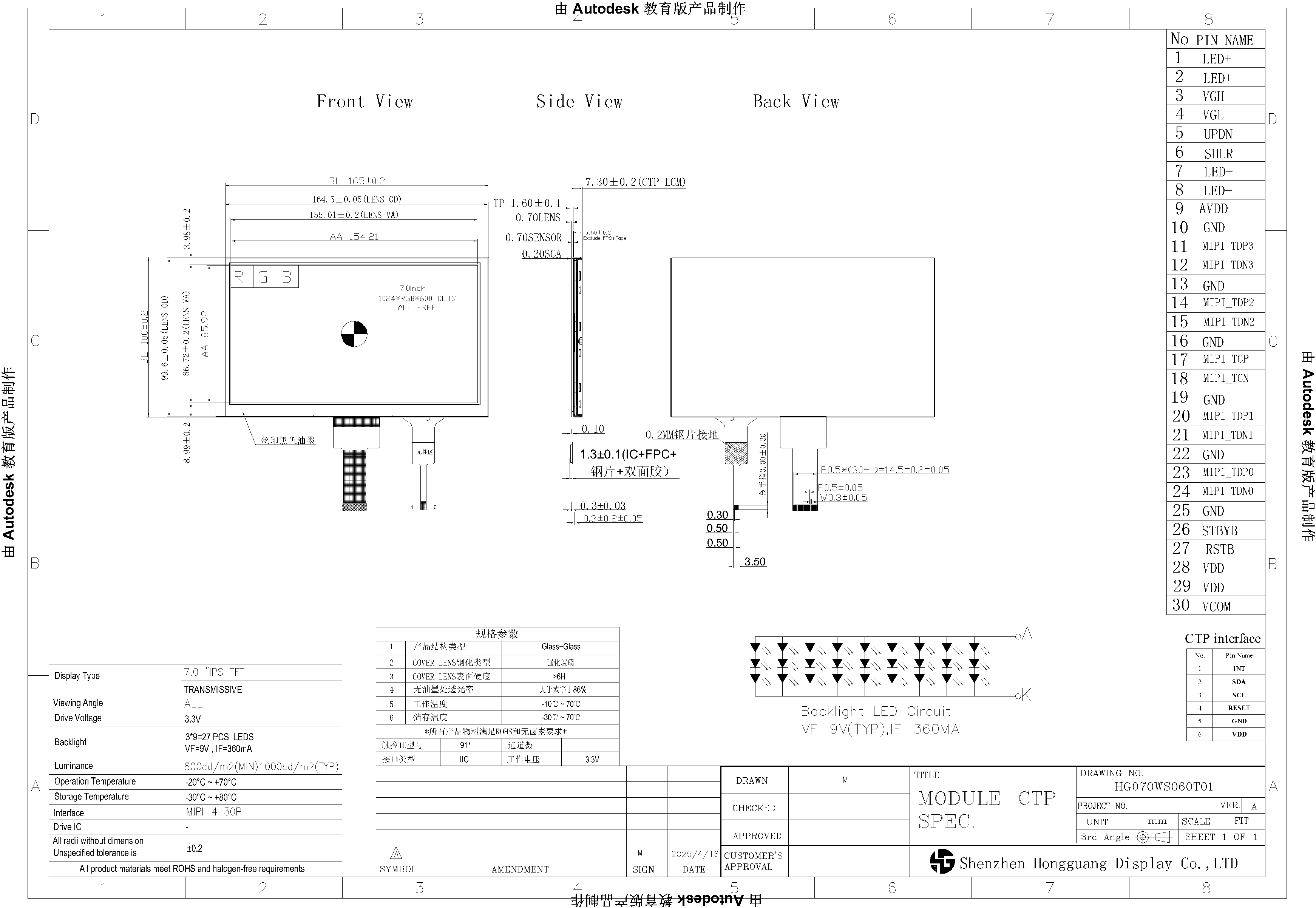

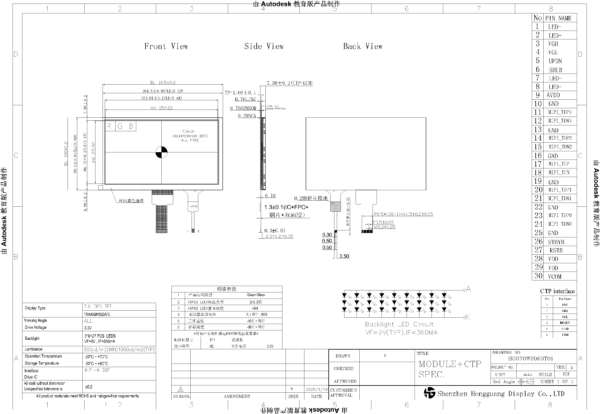

Resources: Specifications | 2D Render

This is a Hongguang 7-inch TFT display touchscreen with a resolution of 1024×600 and a pixel density of 170 PPI, ensuring clear display of text and images. With a high brightness of 1000 cd/m², it remains clear, vivid, and bright even in strong light and outdoors. IPS technology provides a wide viewing angle of 178°, ensuring consistent color and brightness from all angles. It supports 16.7 million colors and high contrast, accurately reproducing colors.

Touchscreen displays offer convenient interaction, precise operation, immersive experiences, efficient collaboration, and versatile adaptability across various scenarios, including daily life, creation, entertainment, office work, industry, and automotive environments.

Hongguang Display offers customization options with a variety of interface types, including MIPI, RGB, LVDS, among others. These interfaces facilitate easy connection with mainstream platforms such as ARM motherboards and microcontrollers. They seamlessly adapt to different devices and provide stable performance and significant roles in industrial control, medical equipment, smart home systems, and automotive systems.

Diagonal	7.0 (inch)
Resolution	1024x600 (pixel)
Display Type	IPS
Display Mode	Normally Black
Optimal View	ALL
Touch Screen	CTP
Module Dimensions	165.00 x 100.00 x 5.50 (mm) (W x H x D)
Active Area	154.21 x 85.92 (mm) (W x H)
Luminance	1000 (cd/m2)
Interface	MIPI
Operating Temperature	-20~+70 (°C)
Storage Temperature	-30~+80 (°C)

To ensure the quality of our products, we have implemented a series of quality control measures.

Production process control	We strictly control every aspect of our production process, including material selection, production technology, and equipment maintenance. Our production process has been optimized to ensure that our LCD displays meet the required quality standards.
Automated testing equipment	We have introduced advanced automated testing equipment to comprehensively and quickly test all aspects of our LCD displays. Automated testing equipment increases testing efficiency and accuracy, providing essential support to our quality assurance efforts.
Manual testing	Although automated testing equipment can comprehensively test all aspects of LCD displays, manual testing is still an essential part of our quality assurance process. Our professional-quality management team conducts manual testing on every LCD display to ensure that our products meet the required quality standards.
Sampling inspection	We implement sampling inspection throughout the production process to ensure that each batch of LCD displays meets the required quality standards. Our quality management team conducts sampling inspections at each stage of production.
Quality management system	We have established a comprehensive quality management system, including the development of strict quality standards, the establishment of a sound quality management process, and the training of professional quality management personnel.
Supervision and inspection	We regularly invite third-party inspection agencies to conduct supervision and inspection of our production process and products to ensure that we comply with quality management systems and standards.
After-sales service	We provide comprehensive after-sales service, including product quality guarantee periods, product maintenance, returns, and exchanges. Our after-sales service ensures that consumer rights are protected, increasing customer satisfaction and loyalty.

Can we order samples first?

What about the delivery time?

Is there a minimum quantity limit for samples and production orders?

How will the goods be delivered and how long will it take to arrive?

How to order the LCD module?

Can I print my logo on the LCD screen?

Is the product quality guaranteed?

Example Code

If you’re looking to prototype and test with our display, we offer an example code library to help you get started. This library includes sample code that you can use as a starting point for your own projects.

IC Datasheets

If you need, we will provide IC Datasheets to you to help you complete the development process. With these resources at your fingertips, you can quickly and easily prototype and test your display designs.

Product Specification

Each of our products has a link to download the specification. You can find the product and browse by our TFT LCD display, OLED display, custom display, and LCD controller board, and click the product name to access the product specification details.

Technical Support

We provide the highest quality and most professional technical support services. If you have any issues or need assistance with our LCD screens, our technical support team is always ready to help and support you.

Solution Support

In addition to providing design and manufacturing services for LCD screens, we also provide comprehensive program support services to help customers realize their unique display requirements. Our scheme support services include comprehensive support from preliminary concept to complete design

Custom support

We provide a variety of customization options according to customer needs, such as screen size, resolution, brightness, contrast, touch technology, appearance design, etc. Our team can also provide technical guidance and design advice to help customers choose the best LCD solution.
