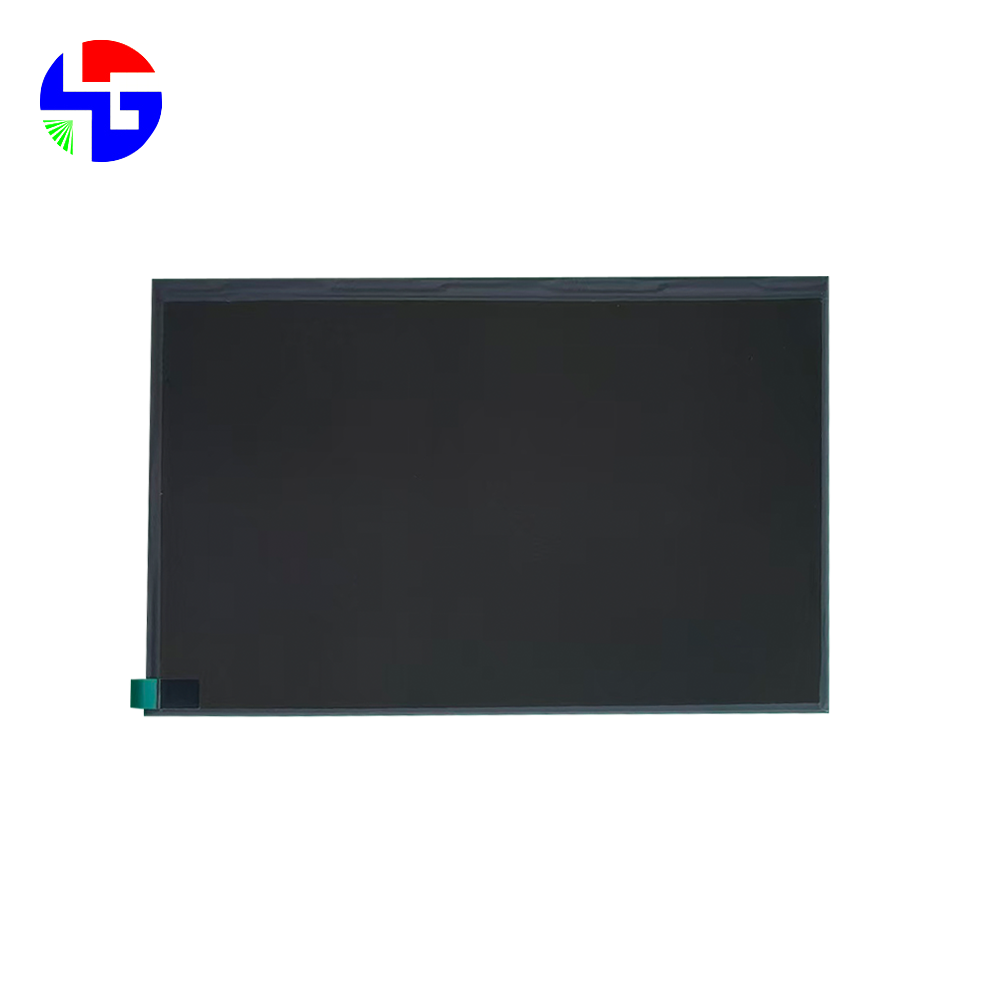

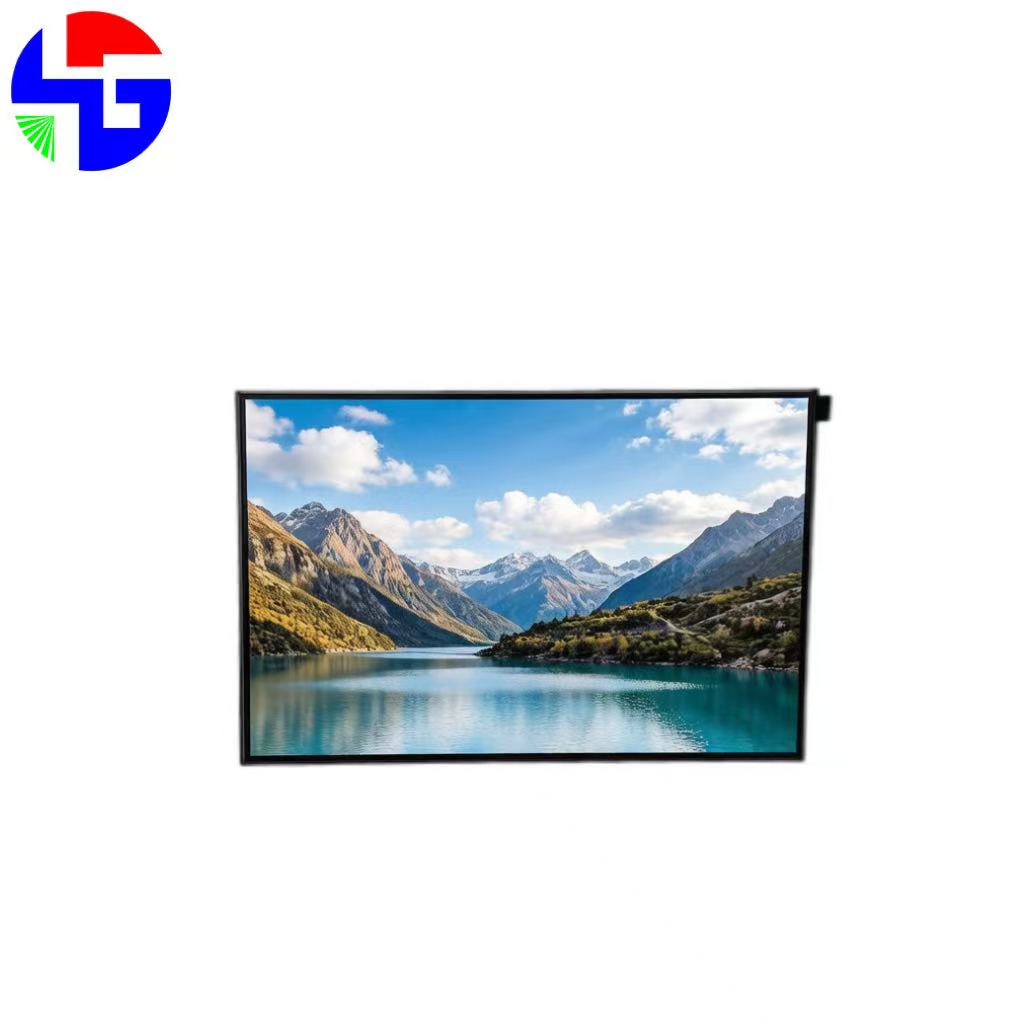

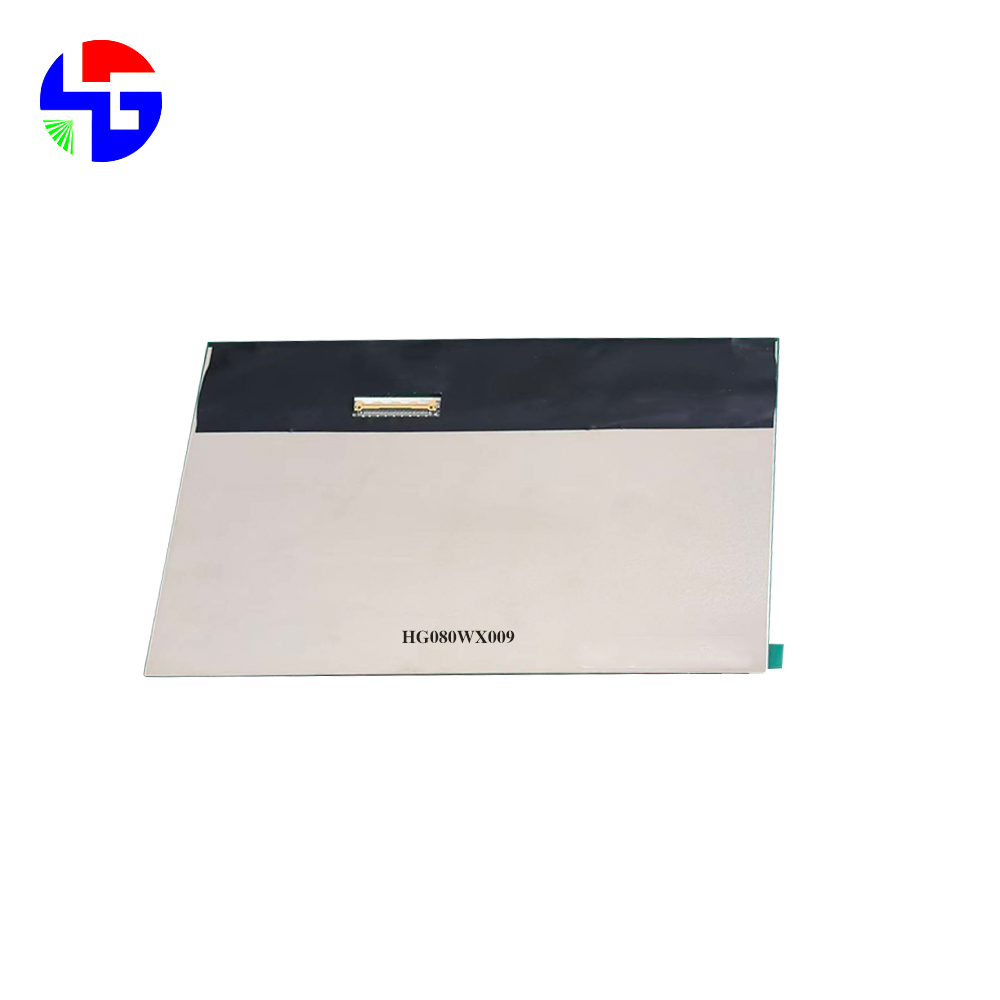

Model: HG080WX009
Size: 8.0 “
Diagonal Pixels:1280X800
Display Type: IPS
Touchscreen:custom
Interface:LVDS
Resources: Specifications | 2D Render
HG080WX009 | 8.0 inch TFT LCD Display| LVDS | IPS | 1280×800 resolution |350 Luminance |HG080WX009| 8.0英寸TFT LCD显示屏| LVDS | IPS | 1280×800分辨率 |350流明亮度 |
This product is a high-performance 8.0-inch TFT LCD display designed for superior visual clarity and versatility. It features an IPS (In-Plane Switching) panel technology with a Normally Black display mode, ensuring wide viewing angles (All-direction) and consistent color accuracy from any perspective. The screen delivers a sharp Resolution of 1280 x 800, making it ideal for detailed graphical interfaces and high-definition content. With a typical luminance of 350 cd/m², it provides bright and clear visibility suitable for various lighting environments.本产品是一款高性能的8.0英寸TFT LCD显示屏，旨在提供卓越的视觉清晰度与高度的灵活性。它采用IPS（平面转换）面板技术，配备常黑显示模式，确保全视角宽广的可视角度，并在任何观看角度下均能保持稳定的色彩精准度。该屏幕拥有1280 x 800的高分辨率，非常适合呈现精细的图形界面和高清内容。其典型亮度为350 cd/m²，可在多种光照环境下提供明亮清晰的显示效果。
The module is engineered with a compact and robust form factor, featuring outline dimensions of 181.65 x 118.75 x 2.25 mm and an active display area of 172.224(H) x 107.64(V) mm. It utilizes a standard LVDS interface for reliable data transmission and supports custom Touch Screen options to meet specific interactive requirements. Designed for durability, the display operates reliably within a temperature range of -20°C to +70°C and can be stored in temperatures ranging from -30°C to +80°C, making it suitable for diverse industrial and commercial applications.该模块采用紧凑而坚固的外形设计，外形尺寸为181.65×118.75×2.25毫米，有效显示区域为172.224（H）×107.64（V）毫米。它配备标准LVDS接口，确保数据传输的可靠性，并支持定制化触控屏选项，以满足特定的交互需求。该显示屏专为耐用性而设计，在-20°C至+70°C的温度范围内均可稳定运行，并可在-30°C至+80°C的温度下储存，适用于各类工业与商业应用场景。
Title标题 | 8.0 Inch TFT LCD Display8.0英寸TFT液晶显示屏 1280×800 Resolution1280×800分辨率 350nits Brightness350尼特亮度 |
Diagonal对角线 | 8.0 Inch8.0英寸 |
Resolution分辨率 | 1280 x 800 |
Display Type显示类型 | IPS |
Display Mode显示模式 | Normally Black常黑 |
Optimal View | ALL |
Touch Screen | custom |
Outline Dimension (mm) (W x H x D) | 181.65 × 118.75× 2.25 Typ.
|
Active Area | 172.224(H) × 107.64(V)(mm) |
Luminance (cd/m2)亮度（cd/m²） | 350 cd/m²(typ)350 cd/m²（典型值） |
Interface接口 | LVDS |
Operating Temperature工作温度 | -20℃~+70℃ |
Storage Temperature存储温度 | -30℃~+80℃ |
To ensure the quality of our products, we have implemented a series of quality control measures.
| Production process control | We strictly control every aspect of our production process, including material selection, production technology, and equipment maintenance. Our production process has been optimized to ensure that our LCD displays meet the required quality standards. |
| Automated testing equipment | We have introduced advanced automated testing equipment to comprehensively and quickly test all aspects of our LCD displays. Automated testing equipment increases testing efficiency and accuracy, providing essential support to our quality assurance efforts. |
| Manual testing | Although automated testing equipment can comprehensively test all aspects of LCD displays, manual testing is still an essential part of our quality assurance process. Our professional-quality management team conducts manual testing on every LCD display to ensure that our products meet the required quality standards. |
| Sampling inspection | We implement sampling inspection throughout the production process to ensure that each batch of LCD displays meets the required quality standards. Our quality management team conducts sampling inspections at each stage of production. |
| Quality management system | We have established a comprehensive quality management system, including the development of strict quality standards, the establishment of a sound quality management process, and the training of professional quality management personnel. |
| Supervision and inspection | We regularly invite third-party inspection agencies to conduct supervision and inspection of our production process and products to ensure that we comply with quality management systems and standards. |
| After-sales service | We provide comprehensive after-sales service, including product quality guarantee periods, product maintenance, returns, and exchanges. Our after-sales service ensures that consumer rights are protected, increasing customer satisfaction and loyalty. |
If you’re looking to prototype and test with our display, we offer an example code library to help you get started. This library includes sample code that you can use as a starting point for your own projects.
If you need, we will provide IC Datasheets to you to help you complete the development process. With these resources at your fingertips, you can quickly and easily prototype and test your display designs.
Each of our products has a link to download the specification. You can find the product and browse by our TFT LCD display, OLED display, custom display, and LCD controller board, and click the product name to access the product specification details.
We provide the highest quality and most professional technical support services. If you have any issues or need assistance with our LCD screens, our technical support team is always ready to help and support you.
In addition to providing design and manufacturing services for LCD screens, we also provide comprehensive program support services to help customers realize their unique display requirements. Our scheme support services include comprehensive support from preliminary concept to complete design
We provide a variety of customization options according to customer needs, such as screen size, resolution, brightness, contrast, touch technology, appearance design, etc. Our team can also provide technical guidance and design advice to help customers choose the best LCD solution.
