HG080WU036
Size: 8.0 ”
Diagonal :1920×1200Pixels
Display Type: IPS Display
Touchscreen:Custom
Interface:MIPI
Resources: Specifications | 2D Render
HG080WU036 | 8.0 inch TFT LCD Display| LVDS | IPS | 1920×1200 high resolution |1000 High Luminance |HG080WU036| 8.0 英寸TFT LCD显示屏| LVDS | IPS | 1920×1200高分辨率 |1000 高亮度 |

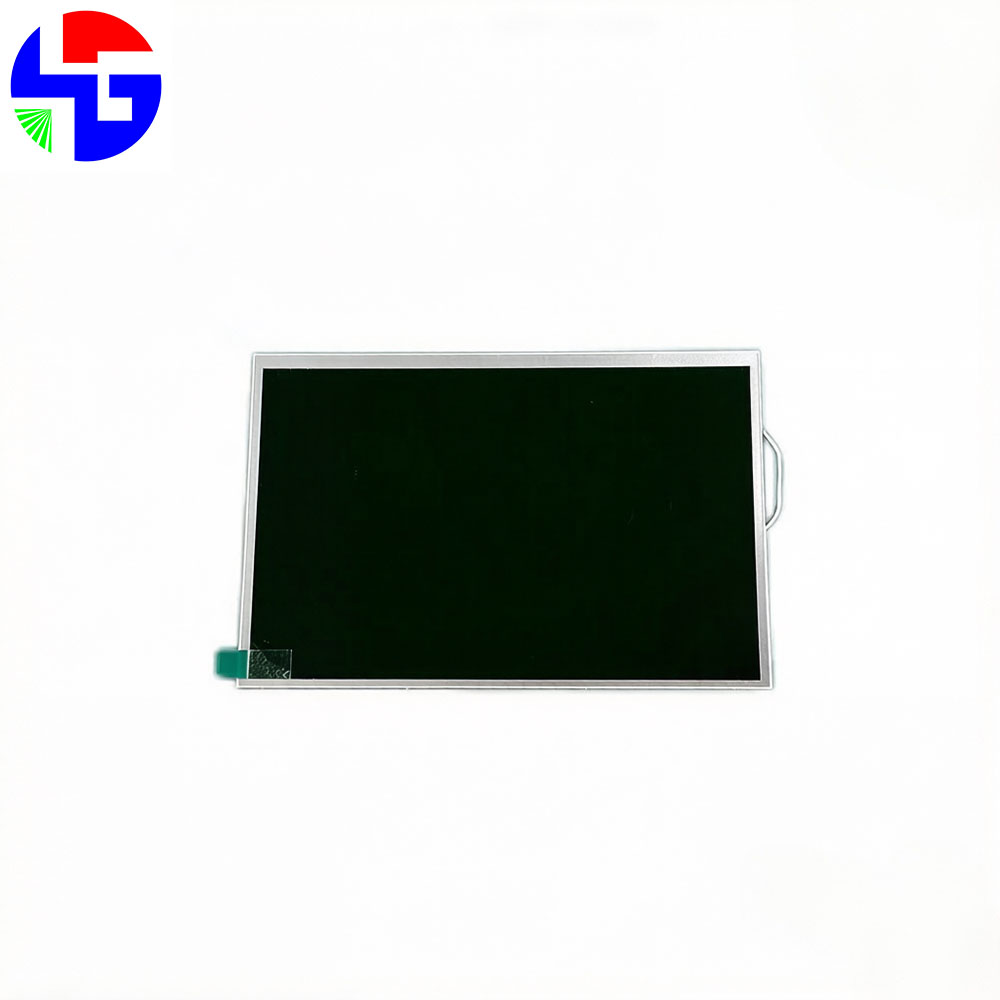

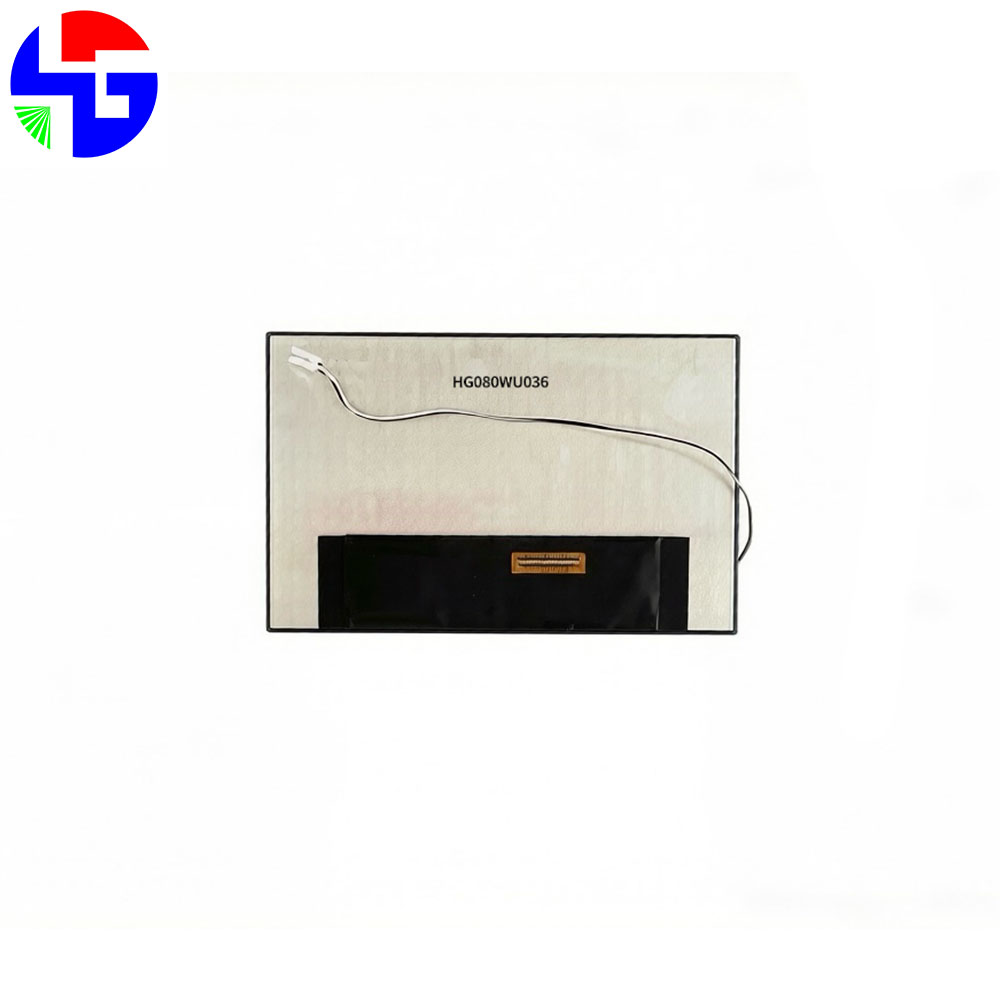

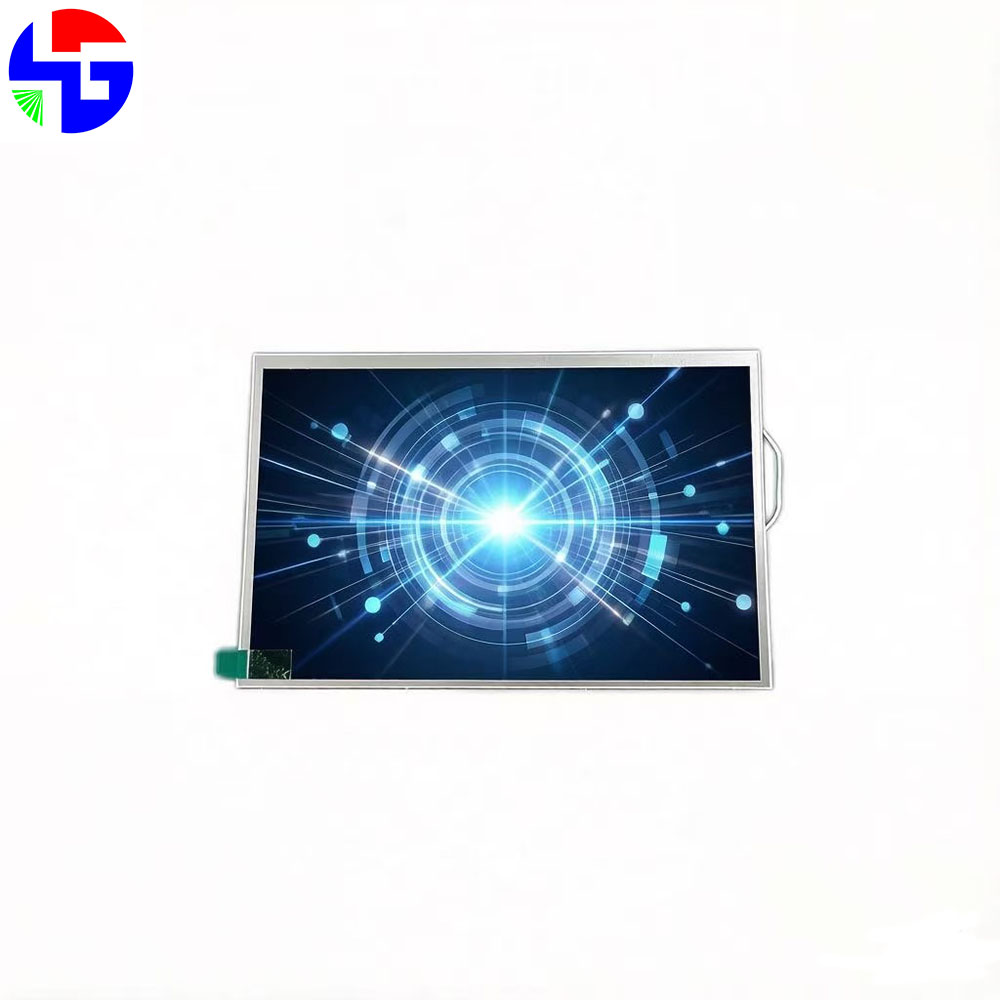

HG080WU036 is an 8-inch industrial-grade IPS high-brightness TFT LCD module, with 1920×1200 high resolution, 1000cd/m² super high brightness and LVDS interface. It features full viewing angle, wide temperature stability and sunlight readable performance, specially designed for industrial control, automotive, medical and outdoor display terminals.HG080WU036 是一款8英寸工业级IPS高亮TFT液晶显示模块，具有1920×1200的高分辨率、1000cd/m²的超高亮度以及LVDS接口。该产品具备全视角、宽温度稳定性及阳光下可读性能，专为工业控制、汽车、医疗和户外显示终端而设计。
Title标题 | 8.0 Inch TFTLCD Display 1920×1200 High Resolution IPS 1000nits High Brightness8.0 英寸TFTLCD显示屏 1920×1200 高分辨率 IPS 1000尼特高亮度 |
Diagonal对角线 | 8inch8英寸 |
Resolution分辨率 | 1920× 1200 |
Display Type显示类型 | IPS |
Display Mode显示模式 | Normally Black常黑 |
Optimal View | Full View |
Touch Screen | custom |
Module Dimensions模块尺寸 | 119.8×181.7 ×5.5mm(W x H x D)119.8×181.7 ×5.5毫米（宽×高×深） |
Active Area有效区域 | 172.224×107.640mm(W x H)172.224×107.640毫米（宽×高） |
Luminance for LCM液晶模块亮度 | 1000TYP1000典型值 |
Interface接口 | LVDS-2 |
Operating Temperature工作温度 | -30 ~ +80°C |
Storage Temperature存储温度 | -30 ~ +80°C |
To ensure the quality of our products, we have implemented a series of quality control measures.
| Production process control | We strictly control every aspect of our production process, including material selection, production technology, and equipment maintenance. Our production process has been optimized to ensure that our LCD displays meet the required quality standards. |
| Automated testing equipment | We have introduced advanced automated testing equipment to comprehensively and quickly test all aspects of our LCD displays. Automated testing equipment increases testing efficiency and accuracy, providing essential support to our quality assurance efforts. |
| Manual testing | Although automated testing equipment can comprehensively test all aspects of LCD displays, manual testing is still an essential part of our quality assurance process. Our professional-quality management team conducts manual testing on every LCD display to ensure that our products meet the required quality standards. |
| Sampling inspection | We implement sampling inspection throughout the production process to ensure that each batch of LCD displays meets the required quality standards. Our quality management team conducts sampling inspections at each stage of production. |
| Quality management system | We have established a comprehensive quality management system, including the development of strict quality standards, the establishment of a sound quality management process, and the training of professional quality management personnel. |
| Supervision and inspection | We regularly invite third-party inspection agencies to conduct supervision and inspection of our production process and products to ensure that we comply with quality management systems and standards. |
| After-sales service | We provide comprehensive after-sales service, including product quality guarantee periods, product maintenance, returns, and exchanges. Our after-sales service ensures that consumer rights are protected, increasing customer satisfaction and loyalty. |
If you’re looking to prototype and test with our display, we offer an example code library to help you get started. This library includes sample code that you can use as a starting point for your own projects.
If you need, we will provide IC Datasheets to you to help you complete the development process. With these resources at your fingertips, you can quickly and easily prototype and test your display designs.
Each of our products has a link to download the specification. You can find the product and browse by our TFT LCD display, OLED display, custom display, and LCD controller board, and click the product name to access the product specification details.
We provide the highest quality and most professional technical support services. If you have any issues or need assistance with our LCD screens, our technical support team is always ready to help and support you.
In addition to providing design and manufacturing services for LCD screens, we also provide comprehensive program support services to help customers realize their unique display requirements. Our scheme support services include comprehensive support from preliminary concept to complete design
We provide a variety of customization options according to customer needs, such as screen size, resolution, brightness, contrast, touch technology, appearance design, etc. Our team can also provide technical guidance and design advice to help customers choose the best LCD solution.
