Model: HG101WU080
Size: 10.1″
Diagonal Pixels:1920X1200
Display Type: IPS
Touchscreen:Custom
Interface:EDP 2‑30PIN
Resources: Specifications | 2D Render

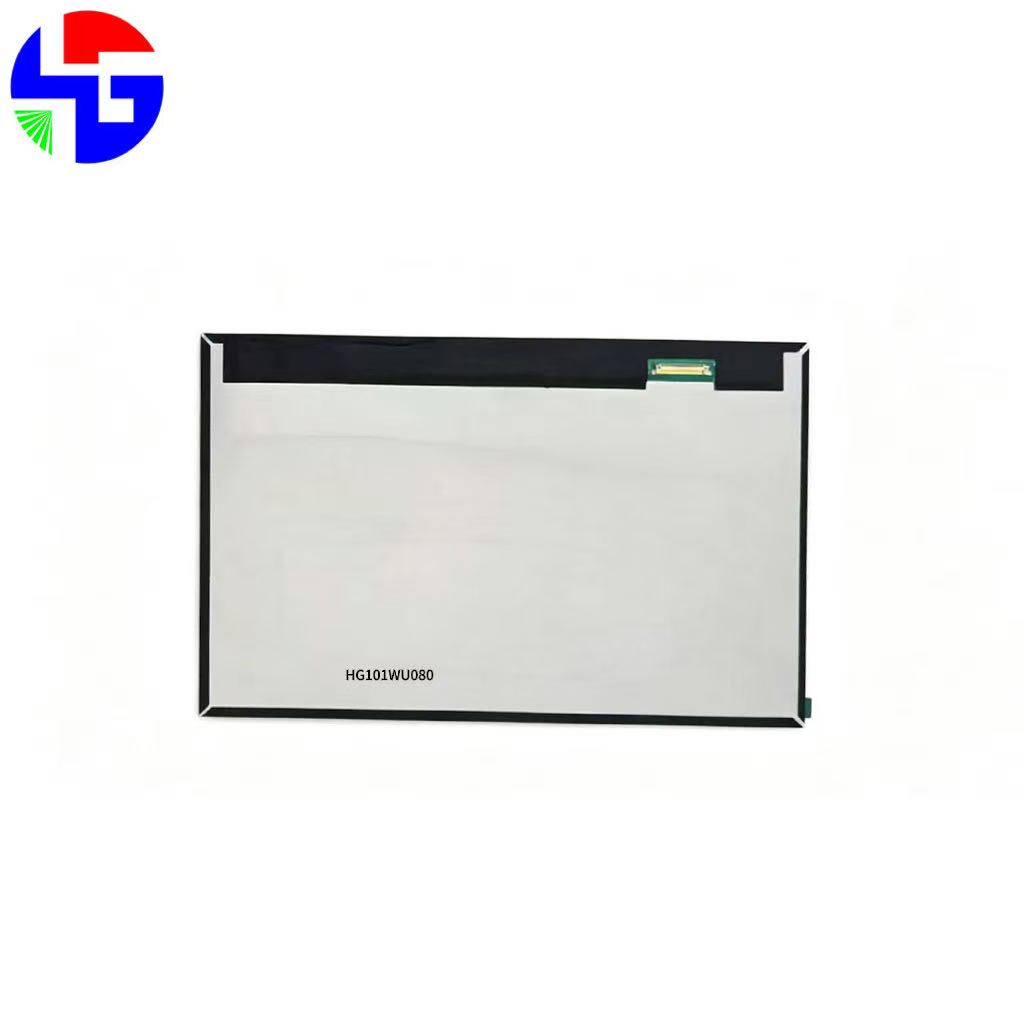

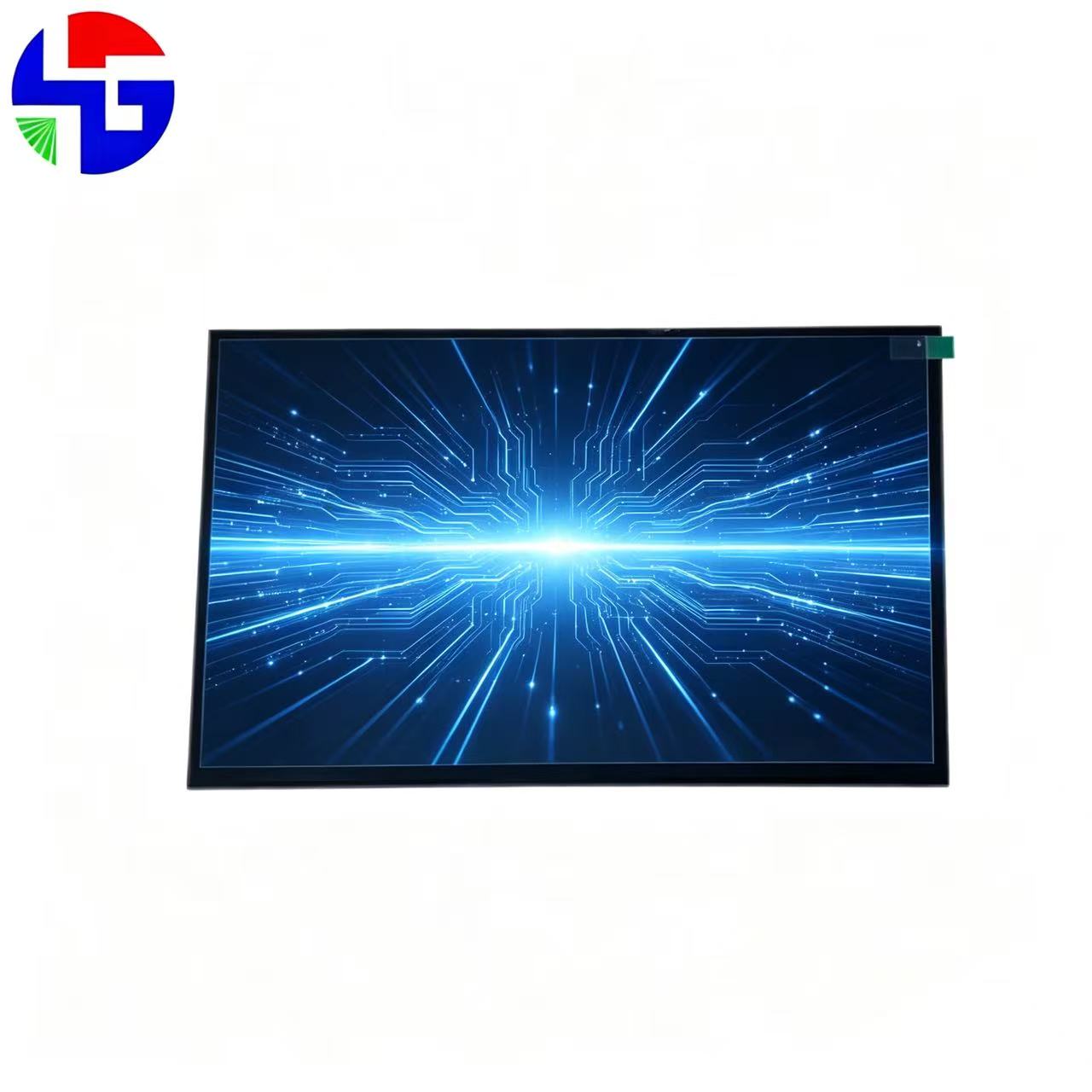

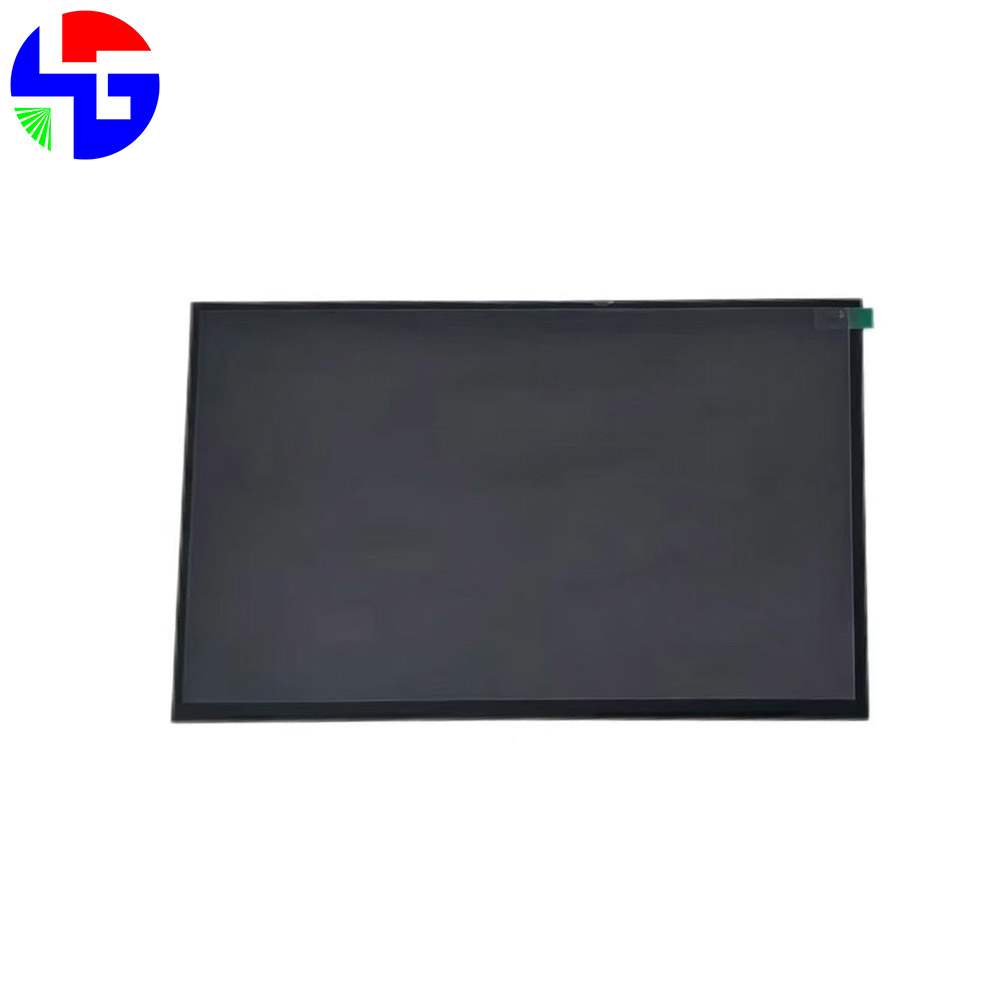

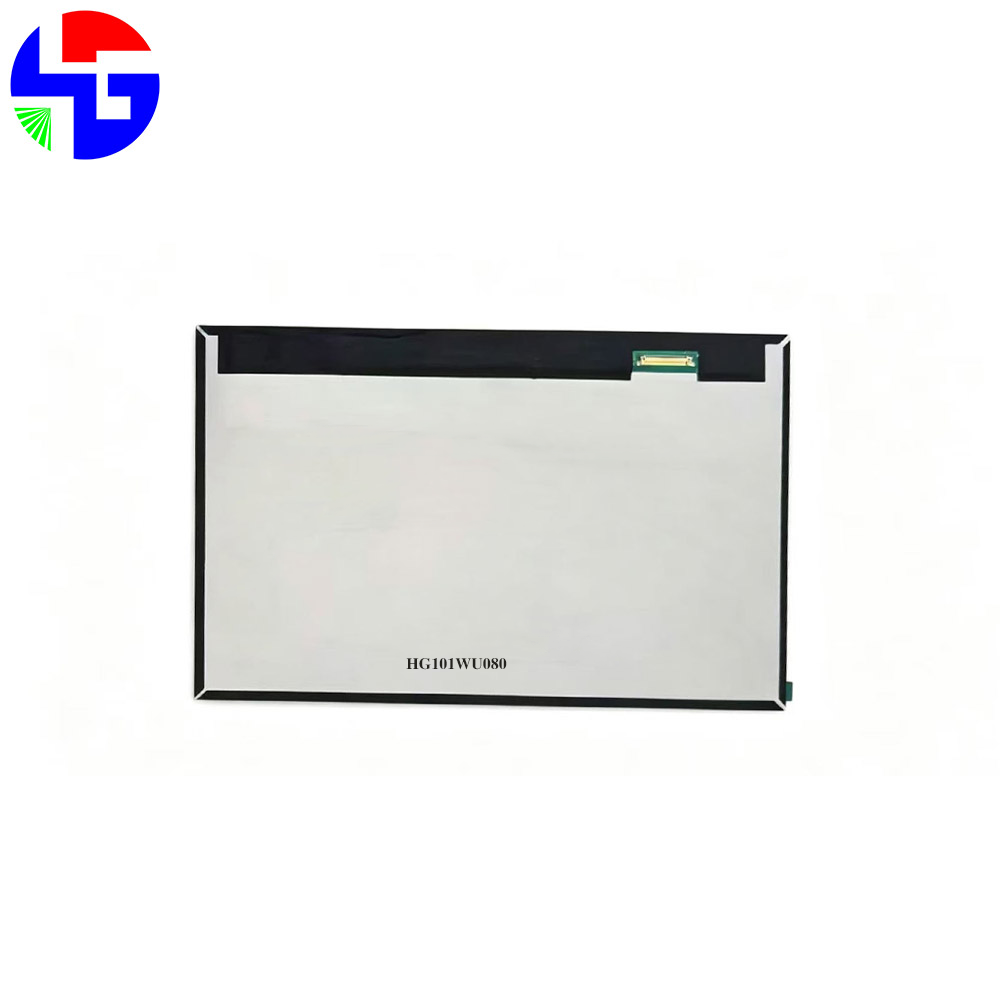

HG101WU080 | 10.1 Inch TFT LCD Display | IPS | 1920×1200 High Resolution | 1000cd/m² High Brightness
This HG101WU080 is a premium 10.1‑inch IPS LCD panel with 1920×1200 high‑definition resolution. It delivers 1000 cd/m² high brightness and full‑angle viewing effect, equipped with stable 30‑pin EDP interface.
With reliable wide‑temperature performance, this non‑touch display works steadily under harsh environments.
Application Fields: Industrial control monitors, portable medical devices, intelligent cabinet screens, small digital signage and vehicle auxiliary display.
Diagonal | 10.1 Inch |
Resolution | 1920x1200 |
Display Type | IPS |
Display Mode | Normally Black |
Optimal View | ALL |
Touch Screen | custom |
Dimensional outline | 228.20(L)×149.00(W)×2.35(H)(mm) |
Active Area | 217.728 (H) ×136.080 (V)(mm) |
Luminance | 1000 cd/m²(TYP) |
Interface | EDP 2‑30PIN |
Operating Temperature | ‑40℃ ~ +70℃ |
Storage Temperature | ‑40℃ ~ +80℃ |
To ensure the quality of our products, we have implemented a series of quality control measures.
| Production process control | We strictly control every aspect of our production process, including material selection, production technology, and equipment maintenance. Our production process has been optimized to ensure that our LCD displays meet the required quality standards. |
| Automated testing equipment | We have introduced advanced automated testing equipment to comprehensively and quickly test all aspects of our LCD displays. Automated testing equipment increases testing efficiency and accuracy, providing essential support to our quality assurance efforts. |
| Manual testing | Although automated testing equipment can comprehensively test all aspects of LCD displays, manual testing is still an essential part of our quality assurance process. Our professional-quality management team conducts manual testing on every LCD display to ensure that our products meet the required quality standards. |
| Sampling inspection | We implement sampling inspection throughout the production process to ensure that each batch of LCD displays meets the required quality standards. Our quality management team conducts sampling inspections at each stage of production. |
| Quality management system | We have established a comprehensive quality management system, including the development of strict quality standards, the establishment of a sound quality management process, and the training of professional quality management personnel. |
| Supervision and inspection | We regularly invite third-party inspection agencies to conduct supervision and inspection of our production process and products to ensure that we comply with quality management systems and standards. |
| After-sales service | We provide comprehensive after-sales service, including product quality guarantee periods, product maintenance, returns, and exchanges. Our after-sales service ensures that consumer rights are protected, increasing customer satisfaction and loyalty. |
If you’re looking to prototype and test with our display, we offer an example code library to help you get started. This library includes sample code that you can use as a starting point for your own projects.
If you need, we will provide IC Datasheets to you to help you complete the development process. With these resources at your fingertips, you can quickly and easily prototype and test your display designs.
Each of our products has a link to download the specification. You can find the product and browse by our TFT LCD display, OLED display, custom display, and LCD controller board, and click the product name to access the product specification details.
We provide the highest quality and most professional technical support services. If you have any issues or need assistance with our LCD screens, our technical support team is always ready to help and support you.
In addition to providing design and manufacturing services for LCD screens, we also provide comprehensive program support services to help customers realize their unique display requirements. Our scheme support services include comprehensive support from preliminary concept to complete design
We provide a variety of customization options according to customer needs, such as screen size, resolution, brightness, contrast, touch technology, appearance design, etc. Our team can also provide technical guidance and design advice to help customers choose the best LCD solution.
Model: HG070WV013R02
Size: 7.0" Diagonal | 800x480 Pixels
Display Type: TN Displays
Touchscreen: RTP
Interface: RGB 40PIN
Resources: Specifications | 2D Render
Model: HG070WS018
Size: 7.0" Diagonal | 1024x600 Pixels
Display Type: IPS displays
Touchscreen: Custom
Interface: LVDS 50PIN
Resources: Specifications | 3D Render
Model: HG050WV005T01
Size: 5.0" Diagonal |800x480 Pixels
Display Type: IPS displays
Touchscreen: Capacitive Touchscreen
Interface: RGB 40PIN
Resources: Specifications | 2D Render
