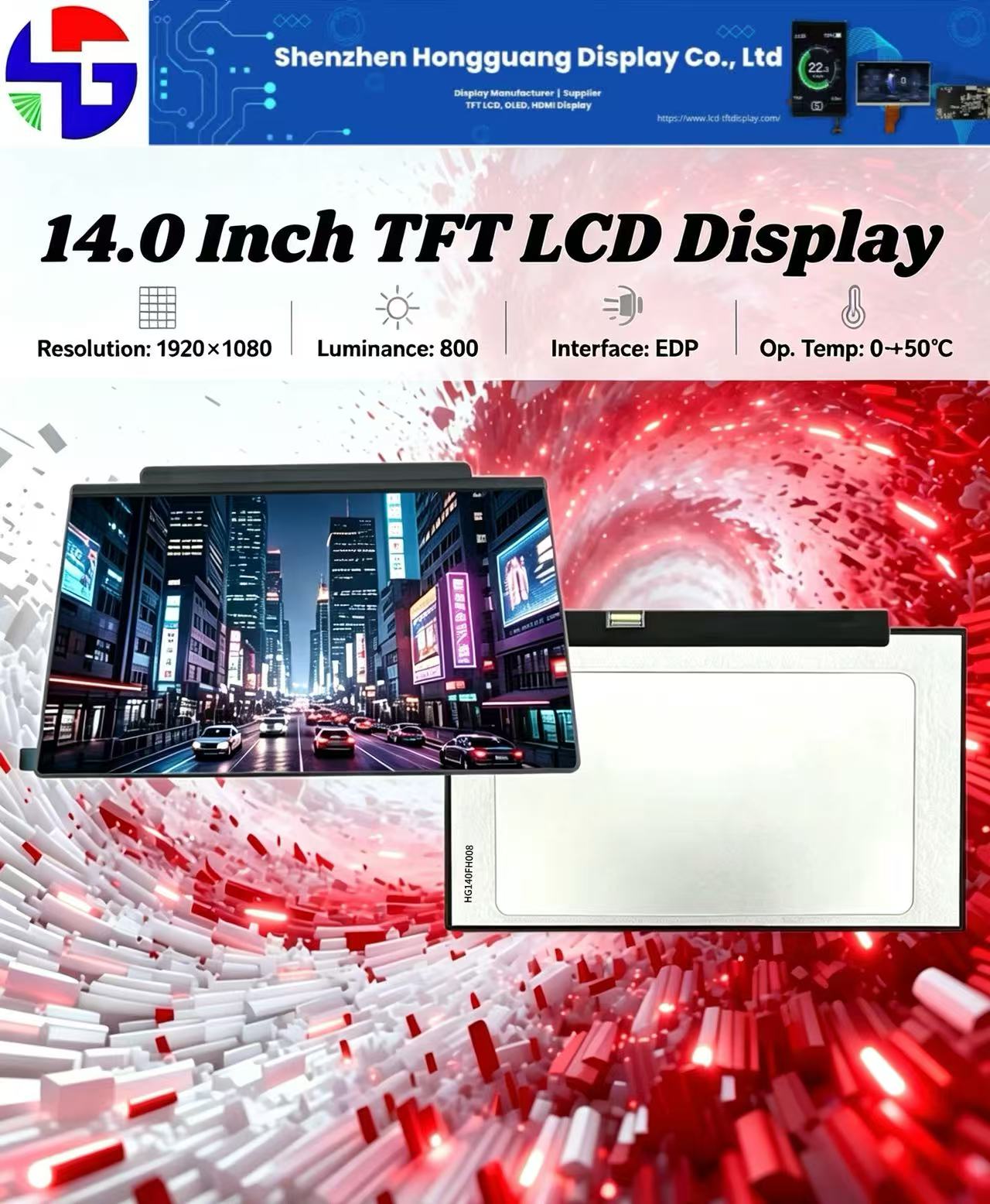

A brand-new 14-inch TFT LCD display module is released for the embedded device market, featuring 1920×1080 full HD resolution, 800 cd/m² high brightness and native Embedded DisplayPort (eDP) interface. Optimized for low-power and high-stability equipment design, this panel serves as a cost-effective display solution for industrial control, portable medical devices and indoor commercial terminals.
The screen adopts standard 16:9 aspect ratio with an active display area of 309.1 mm × 173.9 mm. It features a pixel pitch of 161.1 µm and 157 PPI, delivering sharp text and UI effects at common viewing distances of 30–50 cm, perfectly matching human-machine interface (HMI) equipment demands.
With a typical brightness of 800 cd/m², this module outperforms regular consumer displays (250–400 cd/m²) and guarantees clear viewing under strong ambient light. Equipped with IPS LCD structure, it achieves a static contrast ratio of 1000:1 and over 170-degree full viewing angle without obvious color distortion or gamma shift.
It adopts standard VESA Embedded DisplayPort (eDP) as the core transmission interface:
1. 4 HBR2 lanes running at 2.7 Gbps per lane, supporting 1080P 60Hz output with 24-bit 8-bit RGB full color;
2. COG packaging integrates built-in TCON (Timing Controller) and driving ICs to simplify overall structural design;
3. Optional VESA DSC (Display Stream Compression) technology lowers bandwidth load for main control SoCs;
4. Eliminates extra LVDS transceivers, effectively reducing PCB layout complexity and EMI interference.
The module works steadily within 0°C to +50°C operating temperature, suitable for general industrial and auxiliary vehicle display use cases. By contrast, automotive instrument panels deployed in extreme hot/cold environments usually require a wider temperature range of -40°C to +85°C, which this model does not target.
Mechanically, the whole panel reaches an ultra-slim thickness of around 3.5 mm, with a bottom-side 20Pin FPC connector for eDP signal transmission. No alternative interfaces including MIPI DSI, HDMI and parallel RGB are reserved on this version.
The phase-out of traditional LVDS interfaces on this product reflects the mainstream industry transition: eDP has become the standard connection for medium & large-size embedded screens, balancing transmission bandwidth, power consumption and signal stability.
As a professional display manufacturer equipped with automatic COG and FOG production lines, we supply this 14-inch LCD module with customizable parameters and reliable after-sales technical support. Complete datasheets and sample services are available for global equipment integrators whose main control platforms natively support eDP signal output, including x86 industrial motherboards, NVIDIA Jetson and ARM-based system-on-chips.
