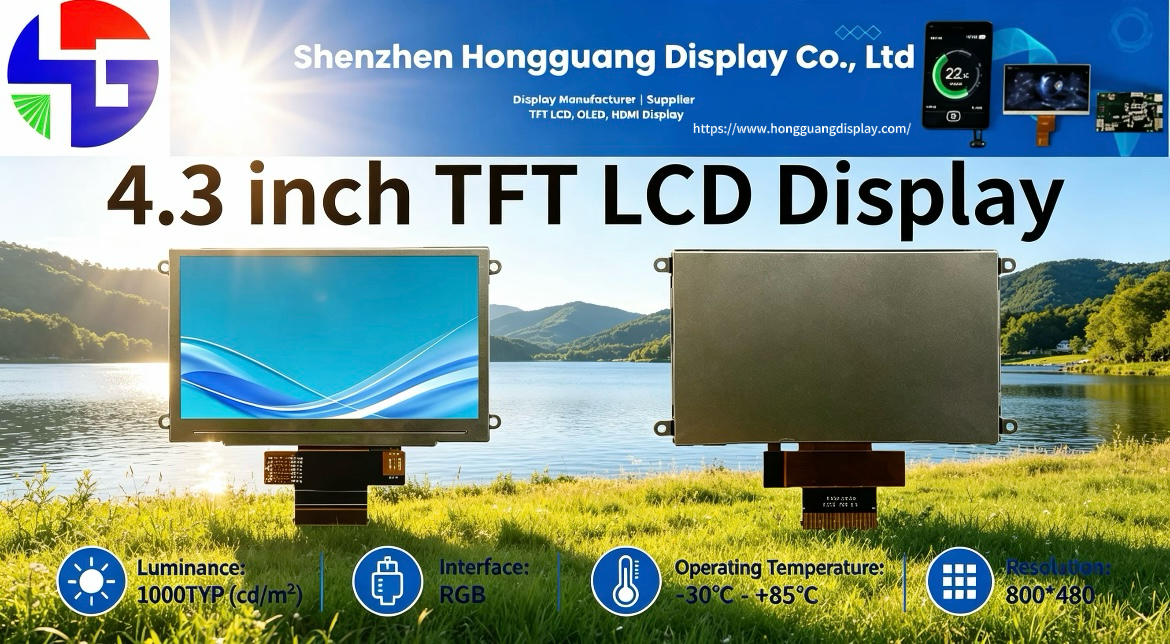

HG043HV029 is a 4.3-inch TFT LCD display module developed by Shenzhen Hongguang Display, designed to satisfy demanding portable, outdoor equipment and rugged handheld terminal display requirements.

This panel features a 800×480 resolution, delivering sharp, clear visual details for data display, operation interfaces and handheld screens. With 1000 cd/m² typical high brightness, it maintains excellent visibility even under ambient light and outdoor sunlight, outperforming ordinary consumer-grade LCD screens.

It adopts the RGB interface, which brings stable signal transmission and convenient , embedded systems and portable industrial terminals.

Featuring a high brightness rating, this TFT LCD ensures excellent visibility even in bright lighting conditions. The display maintains its clarity and legibility, making it suitable for outdoor applications or environments with high ambient lighting.

Whether used in handheld devices, portable instruments, or embedded systems, this TFT LCD delivers vibrant and immersive visuals, enhancing the overall user experience.

The module supports a wide operating temperature range from -30℃ to +85℃. This outstanding thermal tolerance enables stable operation in harsh working environments, avoiding screen blackout, color shift or flicker caused by extreme temperature.

Key Specifications

– Size: 4.3 inch TFT LCD
– Resolution: 800×480
– Brightness: 1000 cd/m² (Typ.)
– Interface: RGB
– Operating Temperature: -30℃ ~ +85℃

We provide sample testing and small-batch support. Customization options including capacitive touch overlay, resistive touch overlay and brightness tuning are available upon request.
Contact us to get detailed datasheet and quotation for your project.
