HG140FH007
Size: 14.0 “
Diagonal :1920x1080Pixels
Display Type: IPS Display
Touchscreen:Custom
Interface:EDP-2
Resources: Specifications | 2D Render

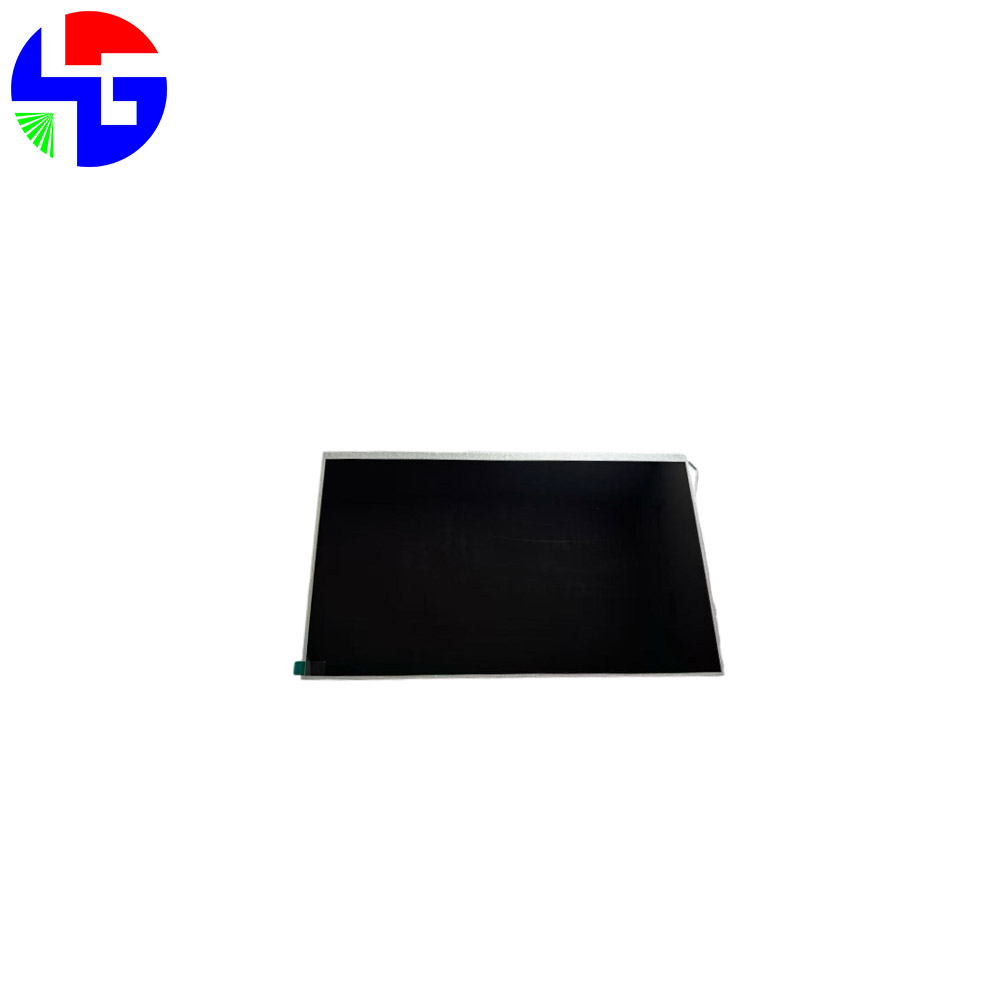

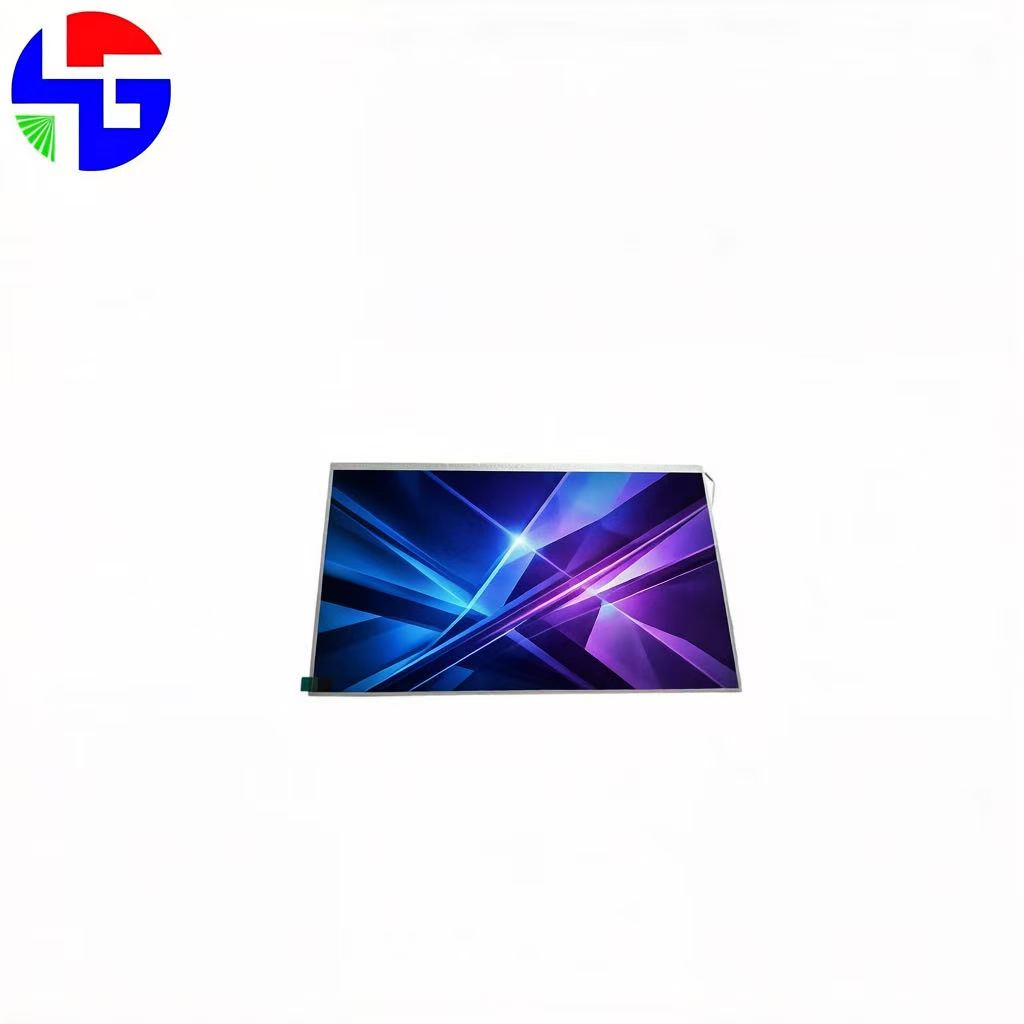

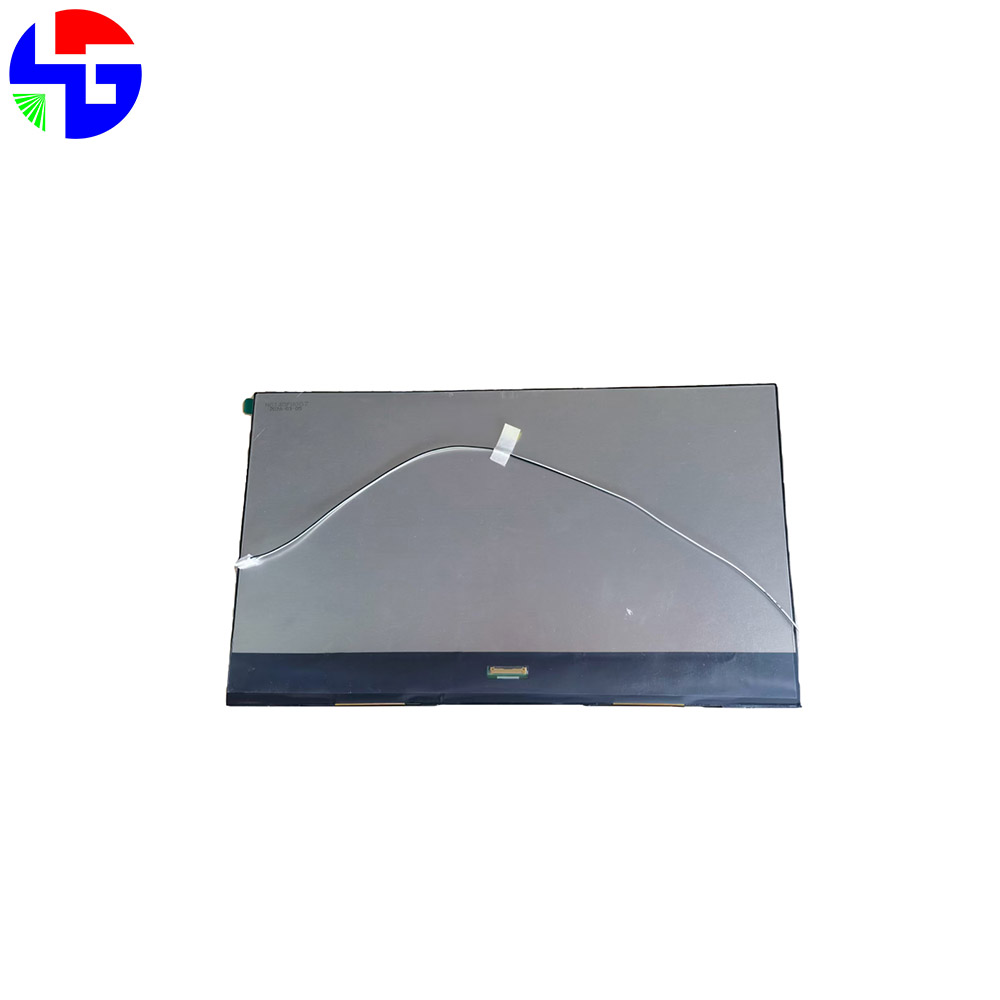

HG140FH007 | 14.0 inch TFT LCD Display|EDP-2 | IPS | 1920×1080 high resolution |1000 High Luminance |HG140FH007| 14.0英寸TFT LCD显示屏|EDP-2 | IPS | 1920×1080高分辨率 |1000高亮度 |
This 14.0-inch TFT LCD Display features high resolution and 1000nits typical brightness, delivering crisp, sunlight-readable visuals. With a wide -30~+80°C operating range, EDP-2 interface, and full viewing angles, it ensures stable performance in demanding environments. Ideal for industrial control panels, medical equipment, outdoor kiosks, rugged devices, and automotive systems requiring reliable, high-quality display solutions.这款14.0英寸TFT LCD显示屏具有高分辨率和1000尼特的典型亮度，可呈现清晰锐利、阳光下也能轻松阅读的视觉效果。它拥有-30~+80°C的宽工作温度范围，采用EDP-2接口，并支持全视角显示，可在严苛环境中确保稳定性能。适用于工业控制面板、医疗设备、户外信息亭、坚固型设备以及需要可靠、高品质显示解决方案的汽车系统。
Title标题 | 14.0 inch TFT LCD Display 1920X1080high resolution 1000High Luminance 14.0英寸TFT液晶显示屏 1920X1080高分辨率 1000高亮度 |
Diagonal对角线 | 14.0inch14.0英寸 |
Resolution分辨率 | 1920x1080(FHD)1920x1080（FHD） |
Display Type显示类型 | IPS |
Display Mode显示模式 | Normally black正常黑色 |
Optimal View最佳视图 | ALL全部 |
Touch Screen触摸屏 | custom自定义 |
Physical Size(mm)物理尺寸（毫米） | 317.46(H) x 186.70(V ) x5.15(T)317.46（高）× 186.70（宽）× 5.15（厚） |
Active Area(mm) | 308.16(H) x 173.34(V ) |
Luminance (cd/m2) | 1000TYP |
Interface | EDP-2 |
Operating Temperature | -30℃ ~ +80℃ |
Storage Temperature | -40℃ ~ +85℃ |
To ensure the quality of our products, we have implemented a series of quality control measures.
| Production process control | We strictly control every aspect of our production process, including material selection, production technology, and equipment maintenance. Our production process has been optimized to ensure that our LCD displays meet the required quality standards. |
| Automated testing equipment | We have introduced advanced automated testing equipment to comprehensively and quickly test all aspects of our LCD displays. Automated testing equipment increases testing efficiency and accuracy, providing essential support to our quality assurance efforts. |
| Manual testing | Although automated testing equipment can comprehensively test all aspects of LCD displays, manual testing is still an essential part of our quality assurance process. Our professional-quality management team conducts manual testing on every LCD display to ensure that our products meet the required quality standards. |
| Sampling inspection | We implement sampling inspection throughout the production process to ensure that each batch of LCD displays meets the required quality standards. Our quality management team conducts sampling inspections at each stage of production. |
| Quality management system | We have established a comprehensive quality management system, including the development of strict quality standards, the establishment of a sound quality management process, and the training of professional quality management personnel. |
| Supervision and inspection | We regularly invite third-party inspection agencies to conduct supervision and inspection of our production process and products to ensure that we comply with quality management systems and standards. |
| After-sales service | We provide comprehensive after-sales service, including product quality guarantee periods, product maintenance, returns, and exchanges. Our after-sales service ensures that consumer rights are protected, increasing customer satisfaction and loyalty. |
If you’re looking to prototype and test with our display, we offer an example code library to help you get started. This library includes sample code that you can use as a starting point for your own projects.
If you need, we will provide IC Datasheets to you to help you complete the development process. With these resources at your fingertips, you can quickly and easily prototype and test your display designs.
Each of our products has a link to download the specification. You can find the product and browse by our TFT LCD display, OLED display, custom display, and LCD controller board, and click the product name to access the product specification details.
We provide the highest quality and most professional technical support services. If you have any issues or need assistance with our LCD screens, our technical support team is always ready to help and support you.
In addition to providing design and manufacturing services for LCD screens, we also provide comprehensive program support services to help customers realize their unique display requirements. Our scheme support services include comprehensive support from preliminary concept to complete design
We provide a variety of customization options according to customer needs, such as screen size, resolution, brightness, contrast, touch technology, appearance design, etc. Our team can also provide technical guidance and design advice to help customers choose the best LCD solution.
